Micro-Magic Ultra-High Precision MEMS IMU U503 Series Safeguards Unmanned Systems In GNSS-Denied Environments

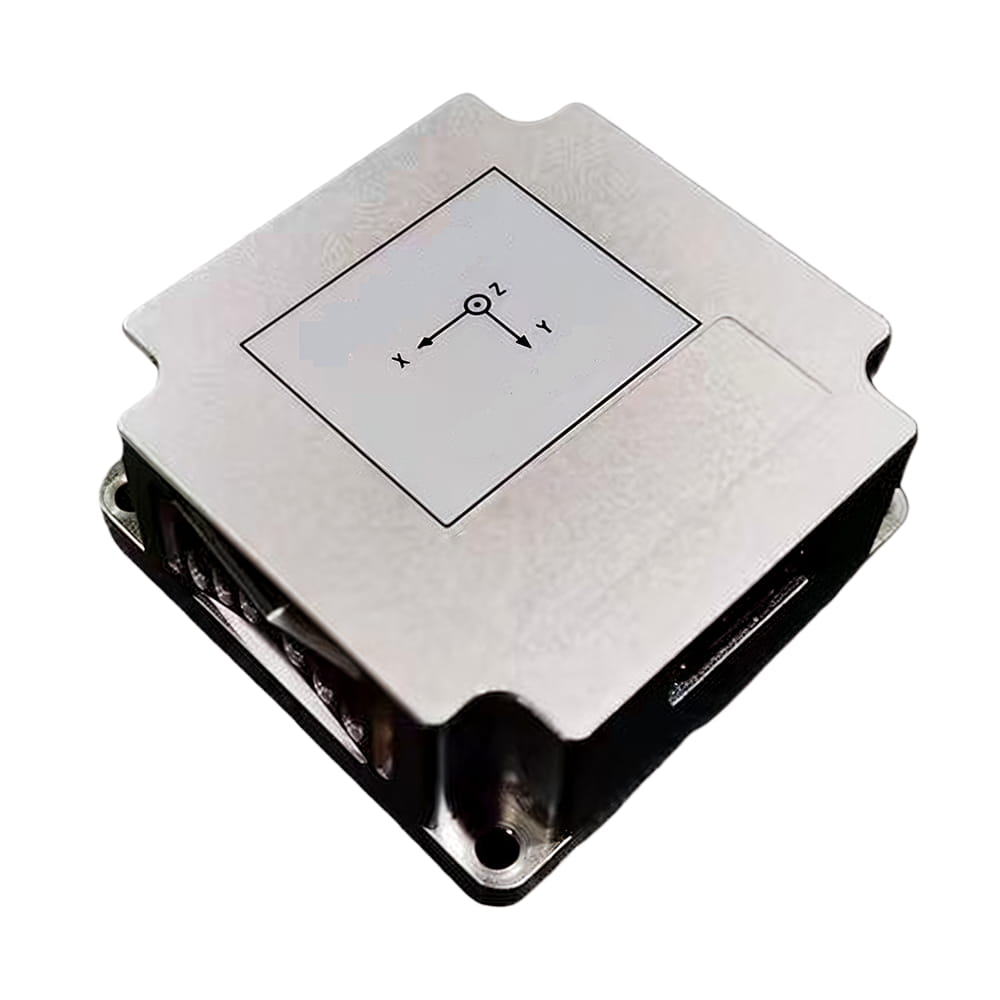

In the field of inertial technology, accuracy has always been the core metric for evaluating IMU value. The U503 series MEMS inertial measurement module introduced by Micro-Magic Inc, with its precision comparable to fiber optic gyroscopes, stable performance across the entire temperature range, and rugged design resistant to harsh environments, plays a pivotal role in the application of unmanned systems.

Ultra-High Precision Technical Performance

The gyroscope performance of the U503 has reached the top level of MEMS devices, with bias instability (Allan variance) ≤0.03°/h, reflecting the device's stability over long time scales and determining the attitude-holding capability of pure inertial navigation. The angular random walk is ≤0.005°/√h, indicating the extremely low gyroscope noise level of the U503, with an angle error of only about 0.3° after 1-hour integration.

The accelerometer of U503 has also reached the top level of industrial grade, with zero bias instability (Allan variance) ≤3μg and excellent long-term stability, supporting high-precision inclination measurement and gravity field modeling. The speed random walk is ≤ 0.01m/s/√ h, and the velocity integration error is extremely low, with a speed error of only about 0.6m/s per hour.

U503 is not simply an integration of "gyroscope+accelerometer", but achieves optimal overall performance through system level design. The gyroscope and accelerometer data are strictly aligned, achieving microsecond level delay output and supporting the application scenario of high dynamic integrated navigation. U503 has achieved cross coupling suppression between sensitive axes, with inter axis coupling of ≤0.001rad, ensuring the orthogonality of three-axis measurements and reducing coordinate system conversion errors. At the same time, U503 has built-in self-test and status word output, which can identify and isolate abnormal situations in a timely manner, achieving real-time monitoring of the status.

System-Level Assurance Behind Accuracy

The ultra-high precision of U503 is not an isolated indicator, but is built on a complete system design. Through full temperature calibration compensation, the zero bias change within the full temperature range is ≤ 20% of the nominal value; Through internal shock-absorbing structure and system sealing design, vibration noise above 1000Hz has been suppressed; By shielding with a metal casing and designing a power filter, EMI interference on analog signals is reduced; Real time output of status words and self check for anomalies to ensure the reliability of output data..

The Core Role of U503 in Unmanned Systems

In GNSS/INS integrated navigation systems, IMU provides high-frequency and high-precision relative motion information. The ultra-high precision of U503 extends the survival time when GNSS signals are interrupted. When unmanned vehicles enter tunnels or drones fly over urban canyons and GNSS signals are lost, the system enters pure inertial navigation mode. The position error of 60 second pure inertial navigation is less than 5 meters, and 300 second pure inertial navigation can still maintain meter level positioning . This means that unmanned systems can rely on inertia to maintain navigation capabilities for a longer period of time until the GNSS signal is reacquired or autonomous landing/parking is completed.

In underground mining, tunnel construction and other scenarios, the ultra-low drift characteristics of U503 enable it to support the strapdown inertial navigation system to complete pure inertial positioning for tens of minutes, and integrate with odometer/wheel speed meter to achieve sub-meter level positioning accuracy.

In scenarios such as drone catapult takeoff, unmanned vehicle collision testing, and missile initial flight, U503 can independently capture the angular velocity and acceleration of the impact process with high bandwidth, and integrate them to obtain attitude changes and velocity trajectories.

U503 does not compromise on dynamic performance while pursuing accuracy. Its bandwidth of ≥200Hz covers the vibration frequencies of UAV rotors and the motion frequency bands of unmanned vehicle suspensions, fully preserving dynamic information. The measurement ranges of ±300°/s and ±30g meet the high-maneuverability requirements of most unmanned systems, preventing sensor saturation. With a maximum data update rate of 2000Hz, it provides real-time feedback for high-speed control loops. This enables the U503 to maintain stability at an ultra-high precision level in static scenarios, while accurately capturing intense motion without distortion in high-dynamic scenarios.

The U503 series MEMS IMU modules, with their precision comparable to fiber optic gyroscopes, stable performance across the full temperature range, and rugged design resistant to harsh environments, provide unmanned systems with a true "high-precision perception core."
