inclination sensors

The TD9-DI is a digital three-axis X, Y, and Z tilt angle sensor (referred to as the "tilt angle sensor") developed domestically by Micro-Magic Inc for high-precision tilt angle measurement modules. It integrates industrial standard RTU Modbus and 0x68 hexadecimal protocols; The accompanying computer analysis software can display and record measurement data in real-time for analysis. Domestic components account for over 85%, with internal core components including MCU microcontrollers, high-precision 16 bit A/D modules, temperature sensors, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

The TD7-DI is a new generation high-performance tilt sensor launched by Micro-Magic Inc, which can maintain high precision in complex movements with a small size. It has a dynamic measurement accuracy of 0.3°, a stable accuracy of 0.05°, and a temperature drift of 0.01°/℃. The output interfaces RS232, RS485, RS422, Modbus, TTL, and CAN buses are optional, making it easy to integrate into user control systems.

The TD6-DI is a new generation MEMS dynamic tilt sensor that can measure tilt data of moving carriers or strong vibration states. Dynamic measurement accuracy of 0.5°, static accuracy of 0.06°, small size, low power consumption, high consistency and stability, output RS232, RS485, RS422, Modbus, TTL, CAN optional; Built in MCU control system, vertical gyroscope and accelerometer, integrated attitude solver, using optimal digital filtering algorithm to reduce noise, combined with N-order Kalman filtering algorithm, eliminating error sources and improving measurement accuracy through various compensations such as nonlinear compensation, orthogonal compensation, temperature drift, etc.

The TD5-DI is a digital three-axis X, Y, Z direction tilt angle sensor (referred to as "tilt angle sensor") developed domestically by Micro-Magic Inc for component tilt angle measurement module. It integrates industrial standard RTU Modbus and 0x68 hexadecimal protocols; Domestic components account for over 85%, with internal core components including MCU microcontrollers, AD modules, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

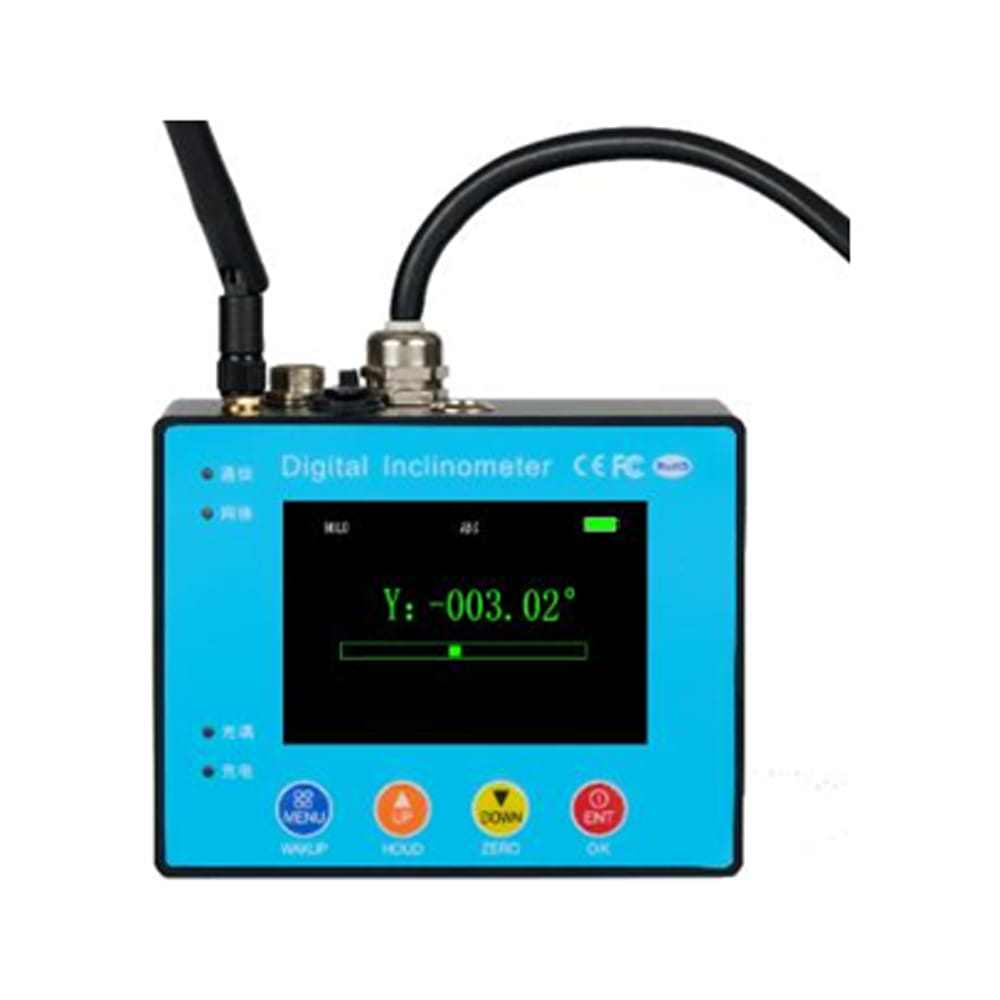

The TDI-A is an inclinometer developed by Micro-Magic Inc that integrates angle measurement, control, and display. It has a built-in high-precision 16-bit A/D converter. Through the n-order filtering algorithm, it can measure the inclination and pitch angle of the sensor output relative to the horizontal plane. The product has built-in ADI's high-precision digital sensor, which can correct the temperature drift of the sensor according to the temperature change monitored by the built-in temperature sensor, ensuring the repeatability of the product in low-temperature and high-temperature environments. Output the corresponding frequency 100Hz. The products are truly industrial-grade products with reliable and stable performance and good scalability, and are suitable for various industrial control environments. The product is simple to operate and provides a zero setting function. The relative zero setting function can be completed with a single click, which facilitates practical application and industrial reliability.

The T7000-N is a domestically developed dual axis tilt angle measuring instrument (referred to as the "inclinometer") and temperature measuring module for high-precision tilt angle measurement of components by Micro-Magic Inc. Range ± 60°, accuracy 0.002°, resolution 0.0006°, output RS232, TTL, RS485, RS422 optional, integrated with industrial standard RTU Modbus and 0x68 hexadecimal protocols; The accompanying computer analysis software can display and record measurement data in real-time for analysis. Domestic components account for over 85%, with internal core components including MCU microcontrollers, high-precision 24 bit A/D modules, temperature sensors, signal processors, power circuits, output circuits, etc. To manufacture domestically produced equipment and overcome barriers to independent research and development technology.

The T7000-M Modbus protocol is a wireless tilt sensor independently developed by Micro-Magic Inc, which features ultra-low power consumption, small size, and high performance. It is designed for Industry applications where users have no power supply conditions or real-time dynamic measurement of object posture angles. Powered by lithium batteries and based on IoT technology Bluetooth, Zigbee (optional) wireless transmission technology. All internal circuits are optimized with industrial-grade MCUs, triple-protection PCB boards, imported cables, wide-temperature metal casings, and other measures to enhance the product's industrial-grade performance, ensuring long-term stability, minimal zero drift, and automatic entry into low-power sleep mode, thereby reducing dependency on usage environments.

T7-D-DI is a newly upgraded next-generation digital small volume MEMS tilt sensor launched by Micro-Magic Inc. It has a built-in dual channel earth gravity tilt unit and measures static gravity acceleration and dynamic angular velocity through a combination of accelerometers and dynamic gyroscopes, converting them into tilt angle changes. Thus, the tilt and pitch angles of the sensor output relative to the horizontal plane can be measured. Output modes RS232, RS485, RS422, or TTL level interface standards are optional. Built in MCU control system enables secondary correction of sensor output linearity, compensating for the accuracy decline caused by insufficient correction in analog models. This product adopts non-contact measurement of raw materials and can output the current posture inclination angle in real time. It is easy to use and does not require retrieving the installation of two surfaces with relative changes. It is an ideal choice for industrial automation control and platform posture measurement. It has strong resistance to external electromagnetic interference and can adapt to long-term work in harsh industrial environments.

The T7000-H is a fully temperature compensated ultra-high precision dual axis tilt sensor with a resolution of 0.0005°, an accuracy of 0.001°, and a temperature drift of 0.0005°/℃. The output interfaces RS232, RS485, RS422, Modbus, and TTL are optional. The product is equipped with professional computer software, data measurement and recording. The feature of non-contact installation has excellent system integration, convenient and convenient installation. It has the ability to resist external electromagnetic interference and withstand strong impact and vibration, and has an absolute advantage in domestic peer products.

T7000-F is a standard industrial high-precision voltage output dual-axis inclination sensor launched by Micro-Magic Inc. The standard voltage is 0~5V, 0.5~4.5V, and 0~10V are optional. At the same time, RS232 output can be used, RS485 can be customized, and it can be used for long-distance transmission of 2000 meters. Users only need to collect the voltage value of the sensor to calculate the object tilt angle. The built-in (MEMS) solid pendulum converts the change of the static gravity field into a change of inclination angle by measuring the change of the static gravity field.   The product adopts the latest MEMS sensing production technology, which makes accurate compensation and correction for temperature error and linearity error, high accuracy, small size, high packaging technology, good vibration resistance, built-in anti-radio frequency, and anti-electromagnetic interference circuit, especially suitable for the application of underground non-excavation machinery and other harsh industrial environments.

The T7000-E series is a high-performance voltage output single-axis tilt sensor with measurement range ±180 °(0~±360° optional) and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.

The T7000-D series is a high-performance voltage output dual-axis tilt sensor with measurement range ± 90 ° and maximum accuracy of 0.008 °. It can output standard 0-5V and 0-10V analog voltages, with RS232 and RS485 options available simultaneously. Good anti-interference characteristics, suitable for long-distance signal transmission. The product is easy to install and use, with multiple output options, resistant to external electromagnetic interference, and strong ability to withstand vibration and impact, suitable for measuring angles in industrial control environments such as surveying and mapping.
