As a new type of all-solid state gyro, fiber optic gyroscope has the advantages of fast start, wide measurement range and high reliability. G-F70HB uniaxial medium and high precision fiber optic gyroscope can be applied to the application requirements of high precision inertial navigation system, such as land positioning orientation, vehicle north finding instrument, airborne navigation posture and Marine gyro. The specification is only applicable to G-F70HB type products, including performance indicators, technical conditions, external dimensions and installation and use. Among them, the technical conditions include the environmental range, electrical performance and physical characteristics of the product.
Part No, :
G-F70HBOrder(MOQ) :
1Protection Level :
IP67Connector :
RS422Product Series and Parameters
| G-F70HB-1310 | G-F70HB-1550 | ||
| Zero bias stability °/hr (1σ,10s) | ≤0.02 | ≤0.02 | 2h continuous testing, 10s smooth results |
| Zero bias stability °/hr (1σ,100s) | ≤0.01 | ≤0.01 | 2h continuous testing, 100s smooth results |
| Stabilization time s | ＜10 | ＜10 | |
| Zero bias repeatability °/hr (1σ) | ≤0.02 | ≤0.02 | 6 test data calculation results |
Full-temperature zero-bias repeatability °/hr |
≤0.08 | ≤0.05 | |
| Random walk coefficient °/ | ≤0.005 | ≤0.005 | |
| The Scale factor of Nonlinearity ppm (1σ) | ≤10 | ≤10 | normal atmospheric temperature |
| The Scale factor of Repeatability ppm (1σ) | ≤10 | ≤10 | normal atmospheric temperature |
| Full-temperature scale factor repeatability ppm (1σ) | ≤200 | ≤60 | -40℃～+60℃ |
| Dynamic range °/s | ±500 | ||
| Magnetic field sensitivity °/hr/Gs | ≤0.02 | ||
| Working temperature ℃ | -40～+70 | ||
| Storage temperature ℃ | -50～+70 | ||
| Vibration conditions Hz | 4.2g, 20～2000 | Sweep frequency vibration has no resonance |
Production process

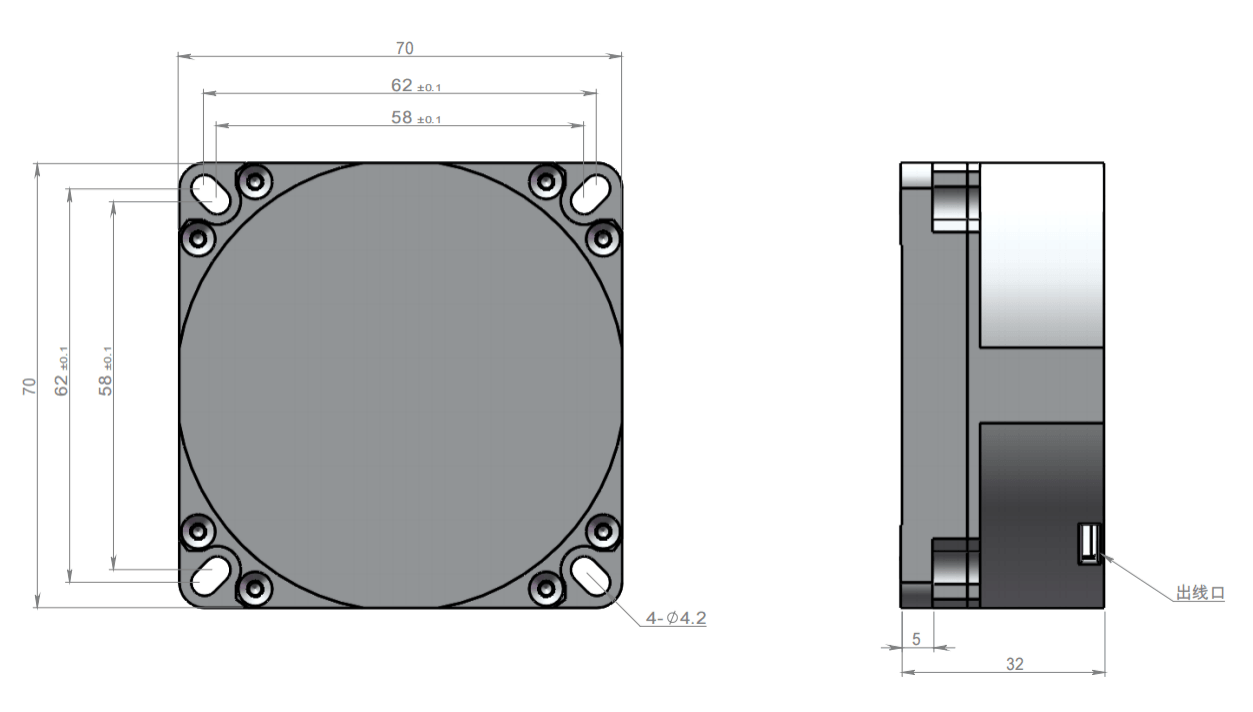

Product dimension
