NF1000 Strapdown MEMS North Seeking Gyrocompass / Azimuth Finder IMU, 200Hz RS422
The NF1000 MEMS inertial north finder is a strapdown north finding solution composed of high-performance MEMS gyroscope and MEMS accelerometer, which can directly measure wellbore inclination angle and tool face angle. The three-axis MEMS gyroscope is sensitive to the angular motion of the carrier, and the three-axis MEMS accelerometer is sensitive to the linear acceleration of the carrier. The module internally compensates for the zero position, scale factor, non-orthogonal error, and acceleration related terms of all temperature parameters, which can maintain high measurement accuracy for a long time.
Part No, :
NF1000Order(MOQ) :
1Product Series and Parameters
| MEMS gyroscope | |
| Range (°/s) | ±200 |
| Zero position (°/h, 1 σ) | ≤0.2 |
| Zero bias stability (°/h, 10s smooth) | ≤0.1 |
| Zero bias instability (°/h, Allan) | ≤0.02 |
| Zero bias repeatability (°/h) | ≤0.1 |
| Angle random walk (°/√ h) | ≤0.01 |
| Scale factor nonlinearity (ppm) | ≤100 |
| Cross coupling (rad) | ≤0.001 |
| Bandwidth (Hz) | ≥50 |
| MEMS accelerometer | |
| Range (g) | ±30 |
| Zero position (mg, 1 σ) | ≤1 |
| Zero bias stability (ug, 10s smooth) | ≤100 |
| Zero bias stability (ug, allan) | ≤50 |
| Zero bias repeatability (ug) | ≤100 |
| Speed random walk (mm/s/√ h) | ≤40 |
| Scale factor nonlinearity (ppm) | ≤500 |
| Cross coupling (rad) | ≤0.001 |
| Bandwidth (Hz) | ≥50 |
| Navigation accuracy | |
| North finding accuracy (°, 1 σ) | 1secL (L represents latitude) |
| Horizontal attitude alignment accuracy (°, 1 σ) | 0.15 |
| Heading maintenance accuracy (°, 1 σ) | 0.5°*h |
| Horizontal attitude maintenance accuracy (°, 1 σ) | 0.2°*h |
| Attitude tracking measurement accuracy (°, 1 σ) | 0.1 |
| Electrical/mechanical interface | |
| Power supply (V) | 5~12 |
| Power (W) | ≤1.5 |
| Start time (s) | ≤2 |
| Communication interface | 1 RSS-422, 1 synchronous output |
| Update rate (Hz) | 200 |

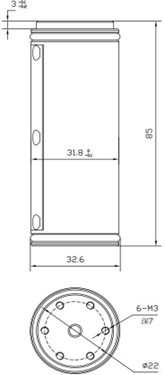

| Size (mm × mm × mm) | Φ31.8 × 85 |
| Weight (g) | ≤400 |
| Usage environment | |
| Working temperature (℃) | -40～+125 |
| Storage temperature (℃) | -55～+85 |
| Vibration (g, Rms) | 20~2000HZ，6.06 |
| Impact (g) | 1000g/1ms |
| Reliability | |
| MTBF (h) | 200000 |
Application Scenarios
The NF1000 is a high-performance MEMS-based north finder that integrates three-axis MEMS gyroscopes and three-axis MEMS accelerometers, delivering full-temperature compensated inertial/attitude (including north-finding) outputs via RS422 (up to 200 Hz)—well-suited for applications such as inertial navigation and attitude stabilization.
