Home FOG Based North Seeker

NF2000

The NF2000 consists of fiber optic gyroscope, accelerometer, mechanical indexing platform, indexing motor, positioning locking motor and mechanism, base, outer cover, control calculation board, LED display screen, power supply, power communication interface, panel buttons, supporting connectors and cables, etc. The product is mainly used for azimuth reference measurement of ground equipment.

Part No, :
NF2000
Order(MOQ) :
1

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

1. Product specification

Parameter	NF2000-A	NF2000-B	Unit
Dimensions	200 × 100 × 90 (can be customized)		mm
Weight	2	2	Kg
Power supply	DC 12		V
Power consumption	≤12		W
Starting time	5		min
Working latitude	-65 ~ +65		°
North finding accuracy	1	0.5	°secψ
North search time	5	5	min
Roll and pitch accuracy	0.1	0.09	°
Range of heading angle measurement	0 ~ 360		°
Measurement range of roll angle and pitch angle	-65 ~ +65		°
Position accuracy	0.8	1.2	nmi/h
Display mode	LCD screen display can provide attitude angle and position information.
Output method	RS422 (can also be customized)
Working temperature	-40 ~ +60		℃
Storage temperature	-50 ~ +70		℃
Vibration environment	20 ~ 2000，6.06g		Hz
Shocking environment	8 ~ 11，30g		ms
Insulation resistance	≥ 100M (standard atmospheric conditions)		Ω
MTBF	≥30000		hr
Electromagnetic compatibility (with system assessment)	Design according to the requirements of GJB 151B-2013 for Army Ground Equipment

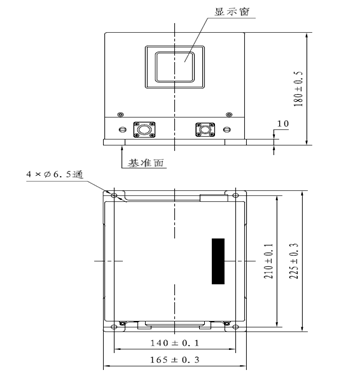

2. Product dimension
