Home Inclination Sensor (Single Board)

T70-G

T70-G

The T70-G series is a new generation of digital small volume MEMS tilt sensors launched by Micro-Magic Inc Hi-Tech Company. It is equipped with a dual channel Earth gravity tilt unit, which measures dynamic gravity acceleration and converts it into tilt angle changes. Thus, it is possible to measure the tilt and pitch angles of the sensor output relative to the horizontal plane. The output methods RS232, RS485, RS422, Modbus, and TTL level interface standards are optional. Due to the built-in MCU control system, the sensor output linearity is corrected twice, compensating for the accuracy decrease caused by insufficient correction in analog models.

Part No, :
T70-G
Order(MOQ) :
1
Measuring axis :
Dual-axis tilt monitoring (single-axis optional)
High resolution :
0.05°
Size :
33*27*8mm (can be customized)
Voltage input :
DC+5V(DC 9~36V can be customized)
Widely operating temperature :
-40～+85℃
Protection level :
IP66 (IP67 can be customized)
Accuracy :
0.3°

Inquire Now

Download

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

1. Product specification

Parameter	Conditions	T70-G-10	T70-G-30	T70-G-60	T70-G-90	Unit
Measuring range		±10	±30	±60	±90	°
Measuring axis		X, Y	X, Y	X, Y	X, Y
Zero temperature drift	-40～85°	±0.05	±0.05	±0.05	±0.05	°/℃
Sensitivity temperature coefficient	-40～85°	≤200	≤200	≤200	≤200	ppm/℃
Frequency response	DC response	100	100	100	100	Hz
Resolution	Bandwidth 5Hz	0.05	0.05	0.05	0.05	°
Accuracy	-40～85℃	0.3				°
Long term stability	-40～85℃	<0.32				°
Power-on start time		0.2				s
Response time		0.01				s
Baud-rate	100K~500K can be set (for others, can be customizable)
Output signal	CAN
Average working hours	≥55000 hours/time
Impact resistance	2500g, 0.5ms, 3 times/axis
Anti-vibration	10grms、10～1000Hz
Insulation resistance	≥100MΩ
Waterproof level	IP66
Cable	Standard 10 cm-length, wear-resistant, oil-proof, wide temperature, shielded cable 4*0.2mm2
Weight	6g (excluding packaging box)

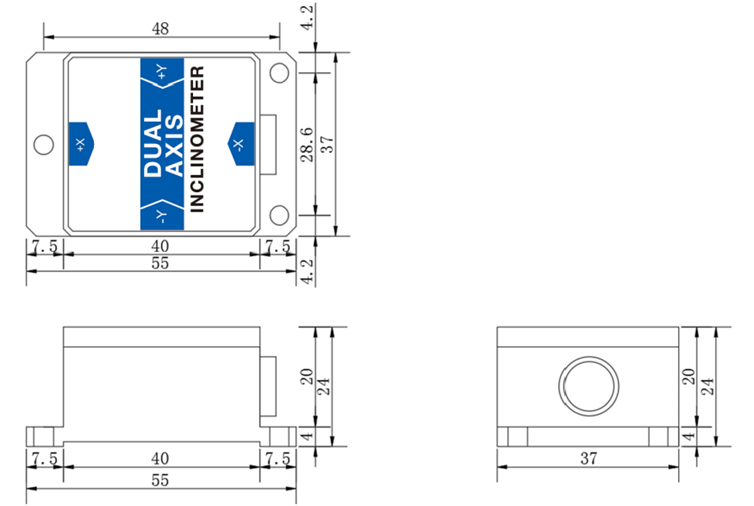

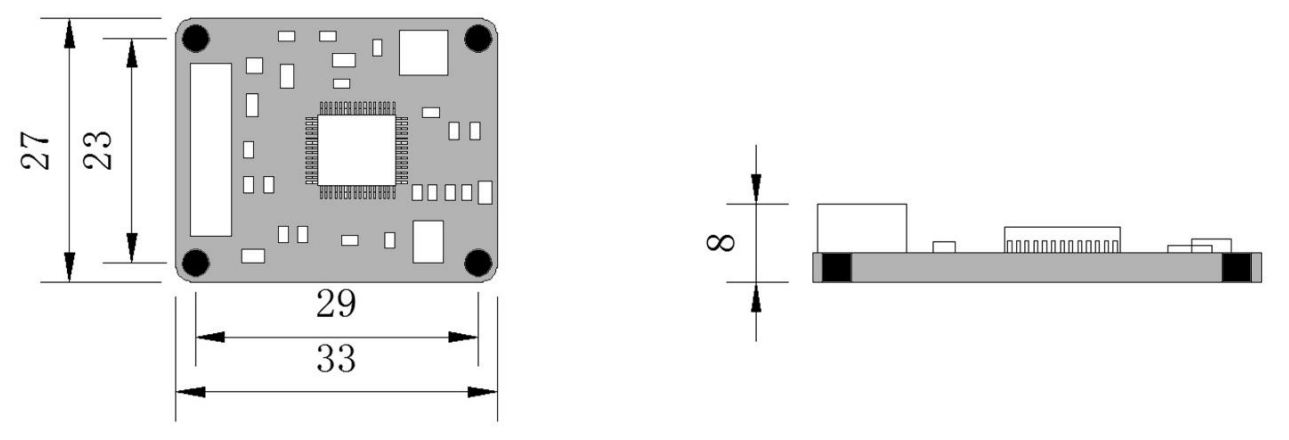

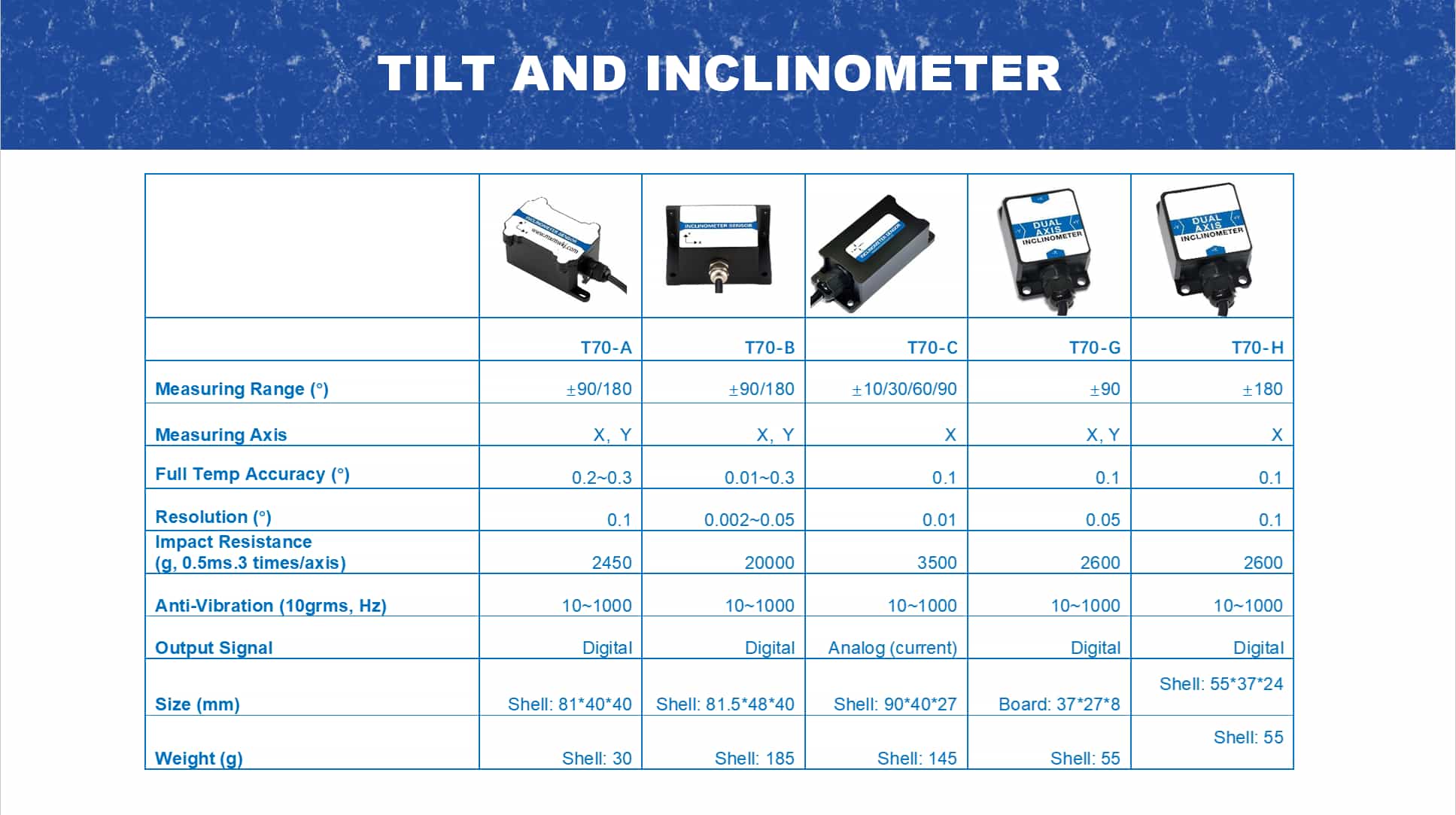

2. Product dimension
