Aerial Photography, Crop Protection, Inspection, and Racing: Recommended IMU Models Precisely Matched to Four Major Drone Sectors

In the rapidly evolving drone industry, the Inertial Measurement Unit (IMU)—acting as the "sensory hub" of the flight control system—directly determines an aircraft's stability, precision, and reliability. Different application scenarios place vastly different demands on IMU performance: aerial photography drones prioritize ultra-stable image output; agricultural drones require precise flight path tracking; inspection drones demand long-duration, high-precision navigation; and racing drones prioritize dynamic response and lightweight design. As a leading domestic supplier of inertial sensors, Micro-Magic Inc. offers a comprehensive product portfolio ranging from MEMS inertial navigation modules to fiber-optic gyro systems, backed by extensive application experience in fields such as drones, autonomous driving, and robotics. This article focuses on four key drone segments—aerial photography, agricultural operations, inspection, and racing—and recommends the most noteworthy IMU models from Micro-Magic Inc. to assist developers in making precise product selections.

I. Aerial Photography Drones: Ensuring Rock-Solid Stability in Every Frame

For aerial photography drones, the core requirements for an IMU are high attitude accuracy, low noise, and excellent temperature stability. Whether for cinema-grade hexacopters or portable camera drones, the attitude data output by the IMU directly dictates the effectiveness of gimbal stabilization and overall image quality.

Recommended Model:

(1) U503 High-Precision 6-Axis MEMS Inertial Navigation Module

The U503 is a high-precision, high-performance 6-axis MEMS inertial measurement module widely used in navigation, control, and measurement applications. Integrating high-performance sensors within a standalone unit—and featuring a hermetically sealed design and internal vibration damping—this module meets the rigorous demands of high-precision, high-dynamic navigation in harsh environments. In aerial photography scenarios, this ensures that the U503 provides stable, reliable attitude data to the flight controller even during strong winds or rapid maneuvers, effectively suppressing image jitter. (2) U16488 High-Performance MEMS IMU (Drop-in replacement for ADIS16488A)

The U16488 is a high-precision, 10-axis MEMS inertial measurement unit integrating a tri-axial gyroscope, tri-axial accelerometer, tri-axial magnetometer, and barometer. It features a gyro bias instability as low as 0.5°/h (typical Allan variance) and an accelerometer bias instability of 20 μg. With its compact dimensions (47 × 44 × 14 mm) and lightweight profile (only 50 g), it is ideally suited for aerial photography drones with strict size and weight constraints. Additionally, the U16488 incorporates full-temperature calibration and compensation mechanisms, maintaining excellent measurement accuracy across a wide temperature range of -40°C to 80°C, thereby ensuring stable, high-quality aerial imagery output under diverse climatic conditions.

II. Agricultural Spraying Drones: Precision Spraying Begins with Precision Sensing

The operational characteristics of agricultural spraying drones dictate unique requirements for IMU performance: long-duration continuous operation, robust vibration resistance, and high-precision fusion with RTK/GNSS systems. Since these operations typically take place at low altitudes and low speeds in high-vibration environments, IMU bias stability and temperature drift control are critical. Recommended models:

(1) U4930 Series High-Precision 6-Axis MEMS IMU (Drop-in replacement for HG4930)

The U4930 series is a flagship industrial-grade MEMS inertial measurement module from Maixinmin Micro, available in three performance tiers: U4930-A, U4930-B, and U4930-C. The U4930-A model boasts a gyro bias instability as low as 0.03°/h, an angular random walk of only 0.02°/√h, and an accelerometer bias instability of 30 μg. This series supports a maximum data output rate of 2000 Hz and operates reliably within an ambient temperature range of -40°C to 80°C. For agricultural spraying drones, a 2000Hz update rate enables the real-time capture of even the slightest airframe vibrations and disturbances; combined with RTK/dual-antenna GNSS, this achieves centimeter-level flight path accuracy, effectively preventing overspraying or missed areas. Notably, the U4930 series serves as a direct drop-in replacement for the Honeywell HG4930, offering a cost-effective domestic alternative.

(2) U503 (Also suitable for agricultural spraying applications)

As previously mentioned, the U503 features internal vibration damping and exceptional vibration and shock resistance, making it ideally suited to the operational demands of agricultural drones, such as frequent takeoffs and landings and exposure to low-altitude vibrations.

III. Inspection Models: Maintaining Heading in GNSS-Denied Environments

Tasks such as power line, pipeline, and bridge inspections impose the most rigorous demands on IMUs, requiring long-duration pure inertial navigation capabilities, resilience against GNSS-denied conditions, and autonomous north-finding functions. Inspection drones often operate in areas where satellite signals are obstructed—such as near high-voltage towers, in canyons, or inside tunnels—requiring the IMU to independently maintain positional and attitude accuracy.

Recommended Model:

(1) IF3700 Satellite-Free Autonomous Navigation INS System

The IF3700 is a high-end inertial navigation system developed by MaiXinMinWei specifically for satellite-free environments. It utilizes a high-precision closed-loop fiber-optic gyroscope (with a full-temperature bias stability of 0.01°/h) and a high-precision quartz accelerometer (20μg) to achieve high-precision pure inertial heading measurement. Its pure inertial performance is impressive: within one hour, the heading angle error is ≤0.01° (RMS), the attitude angle error is ≤0.005°, and the position error is ≤1 nautical mile/hour. In integrated navigation mode, heading accuracy is ≤0.02°, attitude accuracy is ≤0.005°, and RTK positioning accuracy is ≤2cm. It supports a maximum data update rate of 800Hz and offers multiple interfaces, including RS232, RS422, CAN, Ethernet, and USB. For aircraft such as large fixed-wing inspection drones and Vertical Take-Off and Landing (VTOL) UAVs, the IF3700 serves as a primary navigation unit. It maintains high-precision position and attitude output even when satellite signals are lost, ensuring the continuity and safety of inspection missions.

(2) UF200-N High-Performance Fiber-Optic & MEMS Accelerometer Combined IMU

The UF200-N is an Inertial Measurement Unit (IMU) based on high-precision fiber-optic gyroscopes and MEMS accelerometers. It adopts a modular design, offering high reliability and excellent cost-effectiveness. Its fiber-optic gyroscope features a measurement range of ±500°/s, a bias stability of 0.5°/h (10s smoothing), and an angular random walk as low as 0.02°/√h; the MEMS accelerometer offers a range of ±30g and a bias stability of 30μg. The UF200-N supports multiple interfaces, including RS422, RS232, and PPS; it has a steady-state power consumption of only 10W and weighs no more than 0.5kg. For medium-to-large inspection drones, the UF200-N provides high-precision, pure-inertial navigation capabilities within a lightweight package. It maintains stable position and attitude output even in complex environments where GNSS signals are unavailable, making it ideal for long-endurance missions—such as power grid and pipeline inspections—that demand strict precision and reliability. Additionally, its strong vibration and shock resistance allow it to fully meet the rigorous environmental requirements of industrial-grade inspection applications.

(3) U16488 (Comprehensive Navigation with Magnetometer and Barometer)

In addition to the high-precision MEMS IMU mentioned earlier, the U16488 integrates a three-axis magnetometer and a barometer, providing comprehensive environmental sensing capabilities. This makes it particularly suitable for inspection missions requiring multi-source data fusion: the magnetometer assists with heading calibration, while the barometer aids in altitude measurement, creating a triple-redundancy system that ensures the reliability of the inspection trajectory. IV. Racing Models: The Ultimate Pursuit of Speed, Precision, and Lightness

The requirements for IMUs in racing drones (FPV drones) differ significantly from those in other applications: they demand ultra-high dynamic response, an extremely wide measurement range, minimal weight, and low-latency output. Every extreme roll, rapid dive, and instant acceleration pushes the performance limits of the IMU.

Recommended Models:

(1) U503 (Balancing Lightness and High Dynamics)

Although positioned as a high-precision MEMS inertial navigation module, the U503 is designed with high-dynamic applications in mind. Its sealed housing and internal vibration-dampening design ensure stable attitude output even amidst intense vibration and shock. For professional-grade racing drones, it offers an ideal balance between precision and dynamic response capabilities.

(2) U4930-B / U4930-C

The U4930-B and U4930-C versions offer wider gyroscope measurement ranges (with the U4930-C reaching ±500°/s) while providing different trade-offs between bias stability and cost. For budget-conscious racing drone developers, the U4930-C delivers an ultra-wide ±500°/s range at a lower cost, fully capturing the high angular rate movements typical of competitive flight; meanwhile, the U4930-B version is available for professional racing models that demand higher precision.

(3) U16488: The Ultimate Lightweight Choice

Weighing just 50g, the U16488 is the lightest of the four recommended products—a crucial advantage for racing drones where every gram saved counts. Its dual SPI/UART communication interfaces also facilitate rapid integration with mainstream flight controller boards.

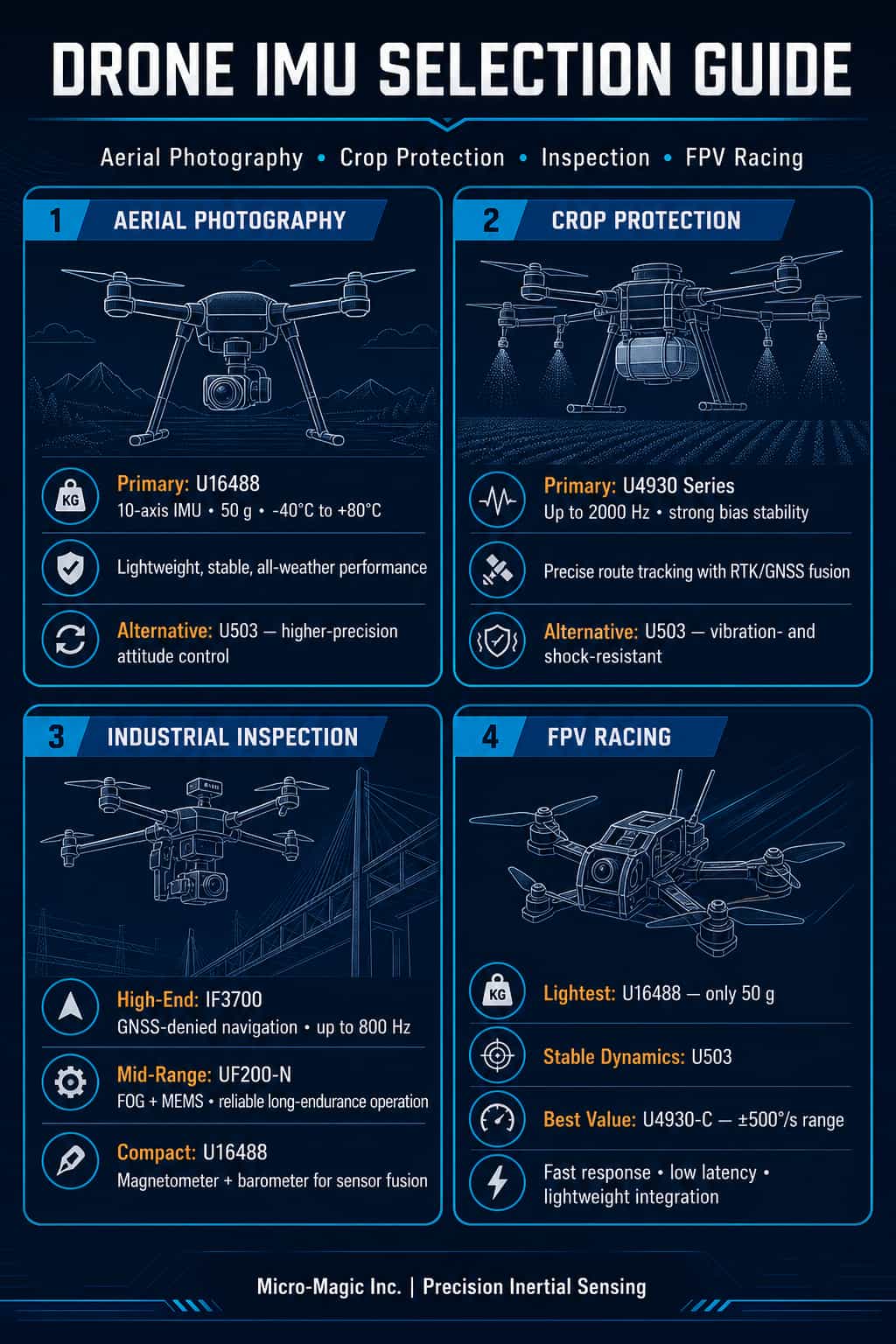

V. Model Overview and Quick Selection Chart

To facilitate quick comparison and selection, the table below summarizes the key features of the models recommended in this article:

VI. Model Selection Summary and Recommendations

For aerial photography drones, the U16488 is the top recommendation; its ultra-lightweight design (50g) combined with full 10-axis functionality ensures a balance between image quality and flight endurance. If superior attitude accuracy is required, the U503 serves as an excellent alternative.

For agricultural drones, the U4930 series is the primary choice. The U4930-A variant, in particular, offers the high stability and 2000Hz output rate needed to meet precision spraying requirements perfectly. Manufacturers requiring deep customization and integration can opt for the configurable version of the U4930A.

For inspection drones, selection should be tiered based on budget and accuracy requirements: the IF3700 is the premier choice for high-end, large-scale drones, as its satellite-free autonomous navigation capability is crucial for inspection missions; the UF200-N (featuring a fiber-optic IMU) is suitable for mid-range models; and the U16488 is recommended for compact drones, offering the advantages of multi-source sensor fusion through its integrated magnetometer and barometer.

For racing drones, balance is key. The U16488 represents the optimal solution for extreme weight reduction, while the U503 excels in stability during high-dynamic maneuvers; meanwhile, the U4930-C stands out as a cost-effective option offering an ultra-wide measurement range (±500°/s).
