Optical Tracking System

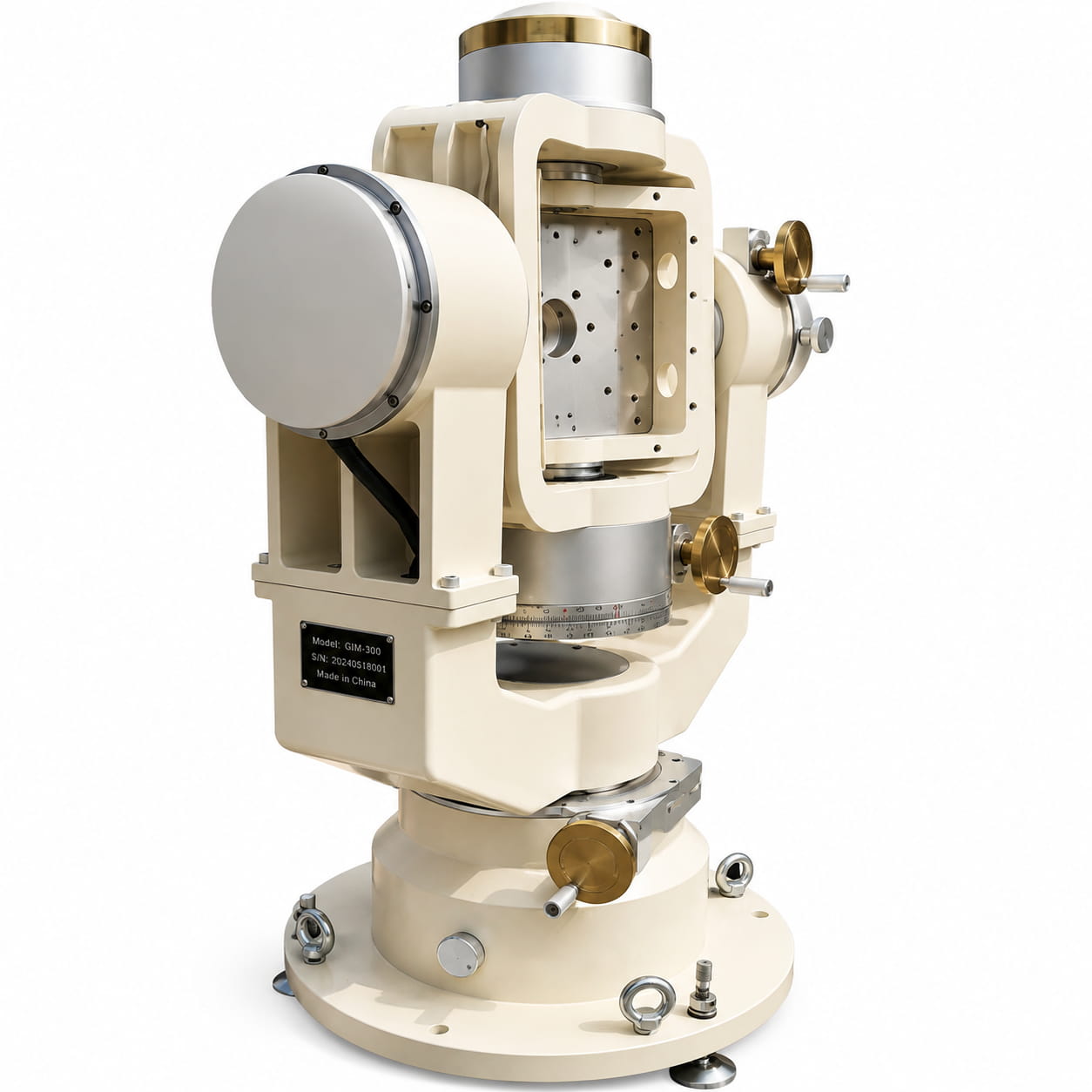

The three-axis non-magnetic turntable, made of non-magnetic materials, is a specialized measuring device designed and produced to meet the calibration needs of attitude sensors during research and development, use, and maintenance. It can be used to calibrate the angular parameters of attitude sensors. The device primarily consists of a turntable body, a non-magnetic digital encoder, a connecting cable, and integrated display software. The three-axis system of the turntable body employs a worm gear and worm structure for axis rotation. The preliminary indication of the three-axis angles is read using a dial and vernier, while precise angular position information is displayed digitally. The integrated display software can display the three-axis angle values in real time and plot the three-axis attitude change curve in real time. The three-axis data can be saved separately in txt files

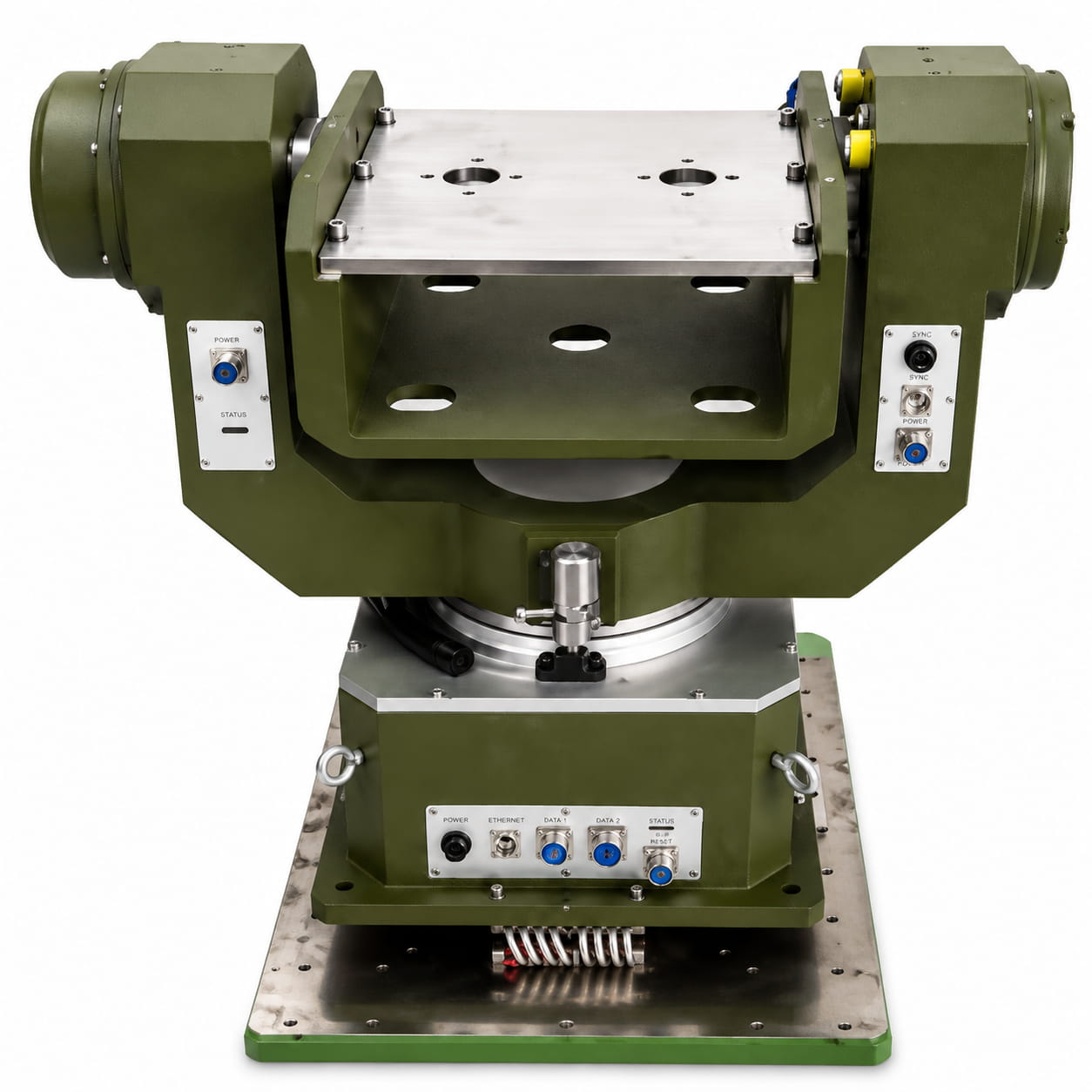

The dual axis tracking turntable is composed of a bearing frame, an inner diameter pitching shaft system, an outer ring azimuth shaft system, a platform base and a measurement and control system circuit. The measurement and control circuit is installed in the base of the platform, with external DC power supply and external serial interface. Connect inertial navigation, satellite navigation, image aiming and other equipment, send control commands through the serial port, control the rotation of pitch axis and azimuth axis, and track and lock flying moving targets such as UAVs.
