Full-Attitude 3D Electronic Compass Provides a Unified Global Heading Reference for Autonomous Robots and Drone Swarms

In today's era where autonomous systems' collaborative operations are becoming increasingly prevalent, providing stable and unified global navigation reference for distributed robotic clusters has always been a key technical challenge. Recently, the C9000 series high-precision six-axis full-attitude electronic compass developed by Micro-Magic Inc was successfully integrated into the next-generation cluster control system of a leading high-end drone system integrator. This integration offers a highly reliable directional benchmark for multi-vehicle cooperative navigation, significantly enhancing the system's overall navigation accuracy and coordination capabilities in complex environments.

In the "Intelligent Inspection Drone Group" project, multiple drones are required to conduct collaborative inspections at the wind power plant. The task requires each drone to maintain a consistent heading coordinate system and accurately synchronize and position complex structures such as wind turbine blades and towers. Traditional single point magnetic compasses are susceptible to electromagnetic interference from wind turbine steel structures, leading to heading deviation and subsequently affecting cluster path planning and data fusion. By carrying the C9000 series full attitude electronic compass, each drone can output high-precision three-axis attitude data of heading, pitch, and roll in real time, and effectively suppress interference from strong magnetic environments on site through built-in hard magnetic, soft magnetic, and tilt compensation algorithms.

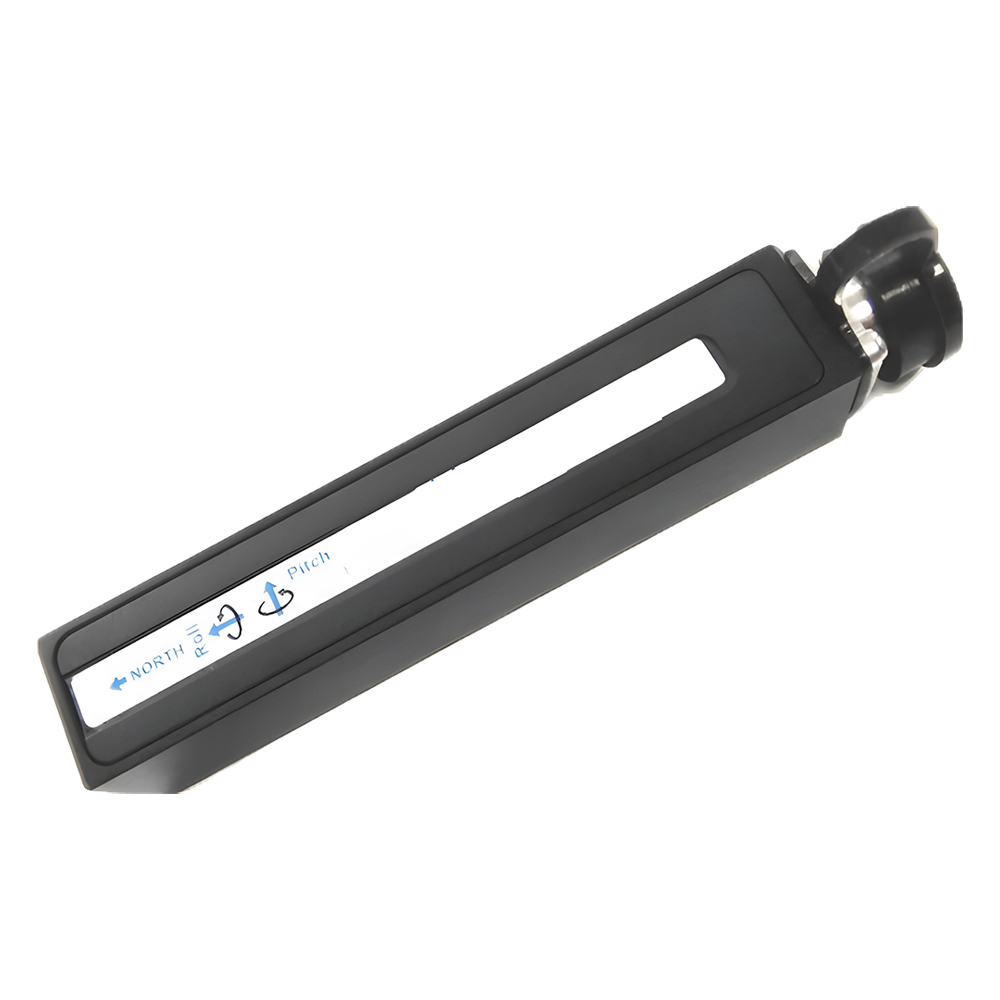

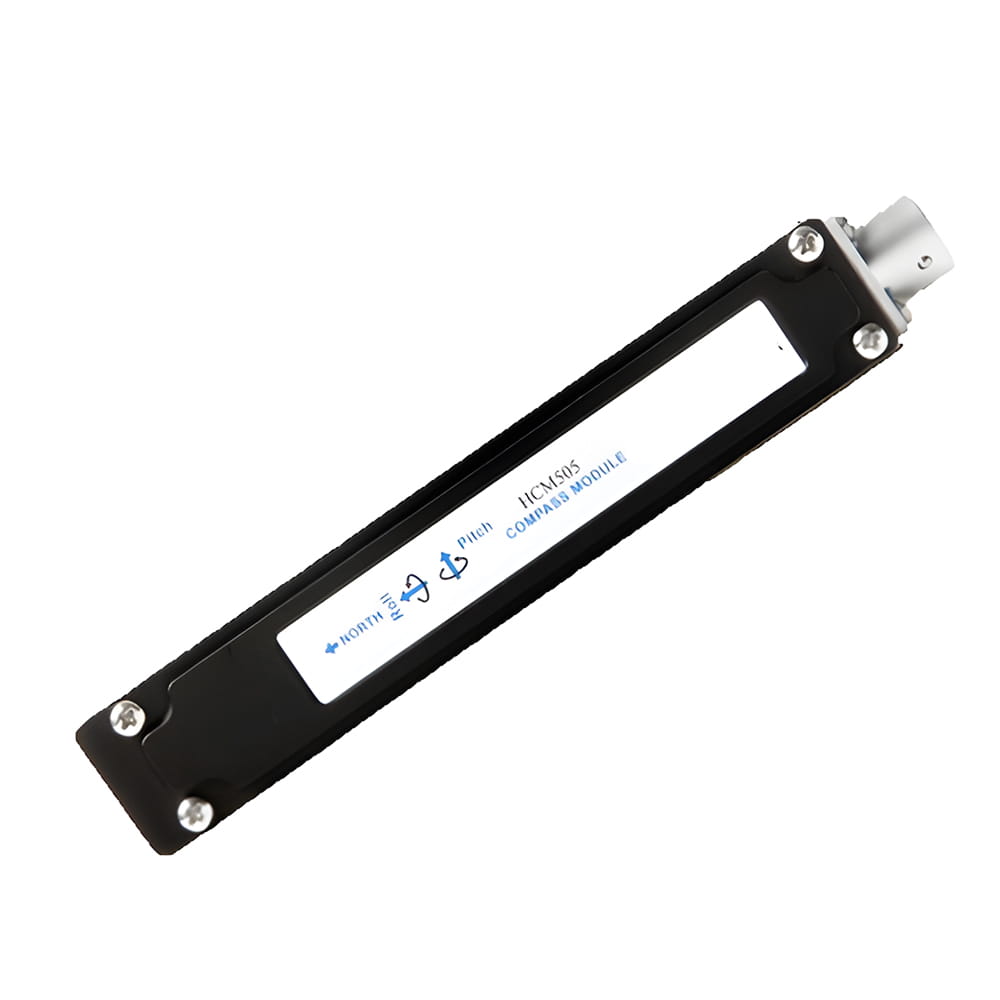

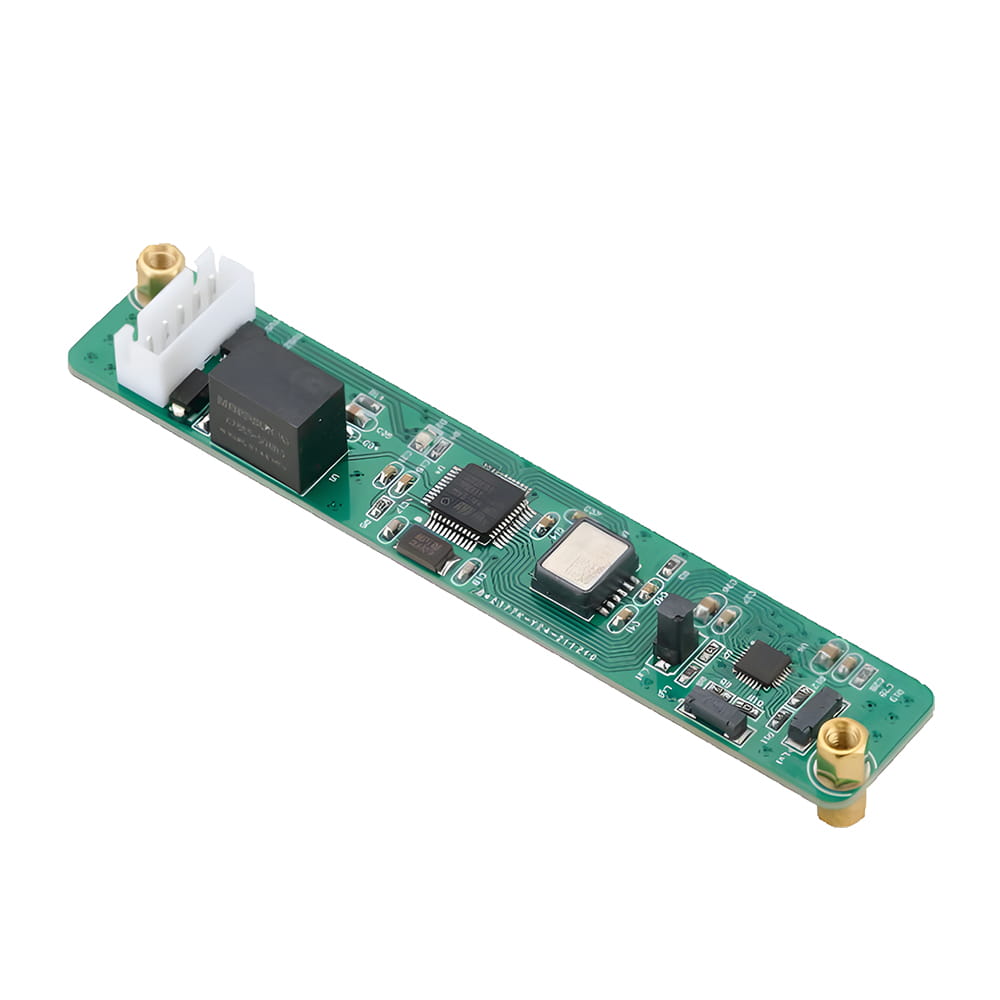

The C9000, with its 0.2 ° heading accuracy and 0.02 ° tilt accuracy, can provide stable attitude output even during large maneuvers of the drone. Its patented full attitude fusion algorithm and extended Kalman filtering technology ensure high data refresh rate and real-time performance during dynamic flight. In addition, the product supports IP67 protection level, with a working temperature range of -40 ℃ to+85 ℃, suitable for harsh outdoor and high-altitude environments, ensuring reliable operation of the system under various weather conditions.

The technical leader of the project stated, "The C9000 series not only provides us with precise heading benchmarks, but its multi interface support and flexible calibration modes also greatly simplify the system integration and on-site debugging process. We have significantly improved the environmental adaptability of the cluster system in different wind farms by using its automatic omnidirectional calibration function to quickly calibrate each drone on site before deployment".

With the continuous expansion of applications such as autonomous driving, drone formation, and robot collaborative operations, high-precision and strong anti-interference full attitude heading sensors are becoming one of the core components for achieving true "cluster intelligence". The C9000 electronic compass provides a unified, stable, and reliable global heading reference, laying the technical foundation for coordinated operations of multi-agent systems in complex real-world scenarios. It is expected to play a more critical role in unmanned systems, industrial inspection, terrain mapping, and even emergency rescue.
