The M3G-210 MEMS three-axis gyroscope is a highly reliable and cost-effective 3-axis MEMS gyroscope assembly, widely applicable in navigation, control, and other fields represented by stability control. The M3G-210 series three-axis gyroscope assembly integrates high-performance MEMS gyroscopes within an independent structure. The gyroscopes selected for the system represent the advanced level of domestic MEMS technology inertial devices. All electronic components within the system are 100% domestically produced. The system internally compensates for the zero bias, scale factor, and non-orthogonal error of the three-axis MEMS gyroscopes across all temperature parameters, maintaining high measurement accuracy over a long period of time.
Part No, :
M3G-210Order(MOQ) :
1Product Series and Parameters
| Parameters | Technical indicators |
| Gyroscope | |
| Measuring range（°/s） | ±500 |
| Full temperature zero bias（°/h，3σ） | ≤30 |
| Zero bias stability（°/h，10s smooth） | ≤2 |
| Zero bias instability（°/h，allan，typ） | 0.1 |
| Zero bias repeatability（°/h） | ≤1 |
| Angle random walk （°/√h） | ≤0.1 |
| Scale factor nonlinearity（ppm） | ≤100 |
| Cross-coupling（rad） | ≤0.001 |
| Bandwidth（Hz） | ≥200Hz |
| Electrical/Mechanical Interface | |
| Power supply（V） | 5~12 |
| Steady-state power(W) | ≤1.5 |
| Startup time（s） | ≤2 |
| Update rate（Hz，max） | 2000 |
| Size（mm×mm×mm） | 44.8×38.6×21.5 |
| Weight（g） | 50±5 |
| Operating Environment | |
| Operating temperature（℃） | -40~80 |
| Storage temperature（℃） | -55~85 |
| Vibration（g，RMS） | 20~2000Hz，6.06 |
| Shock (g, half-sine wave) | 500/1ms |
Production process

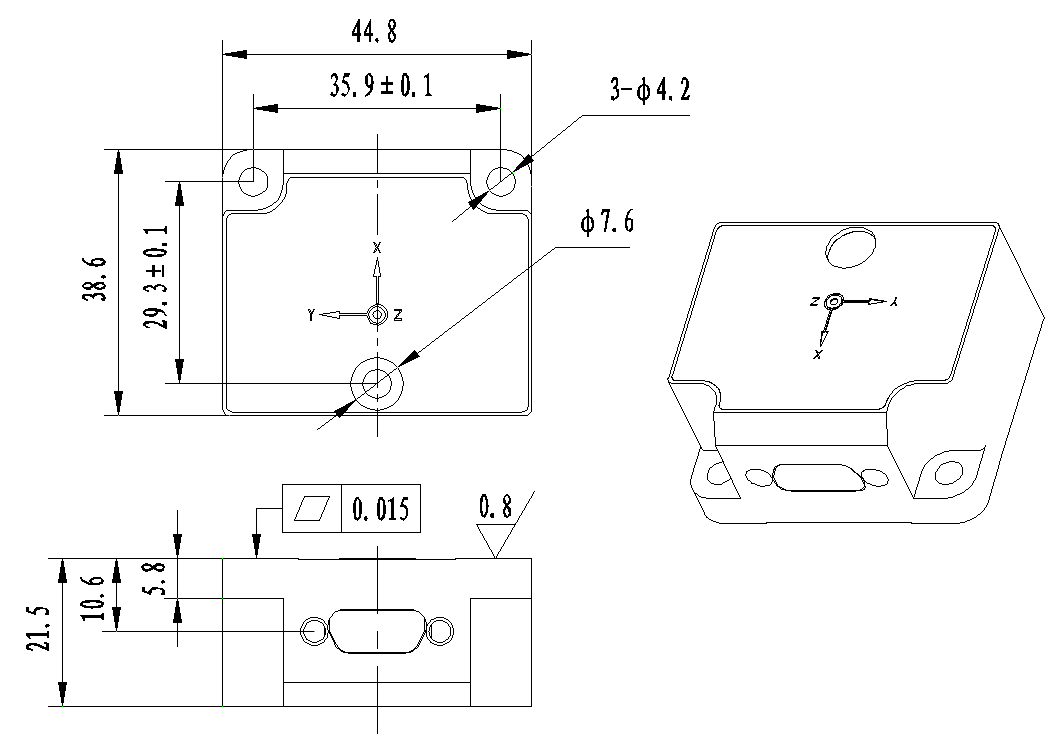

Product dimension
Application Scenarios
The M3G-210 is a high-precision three-axis MEMS gyroscope assembly with full-temperature calibration compensation (-40°C to +80°C) and up to 2 kHz high-speed sampling, outputting angular-rate data via an RS422 interface for navigation, control, and stabilization applications.
