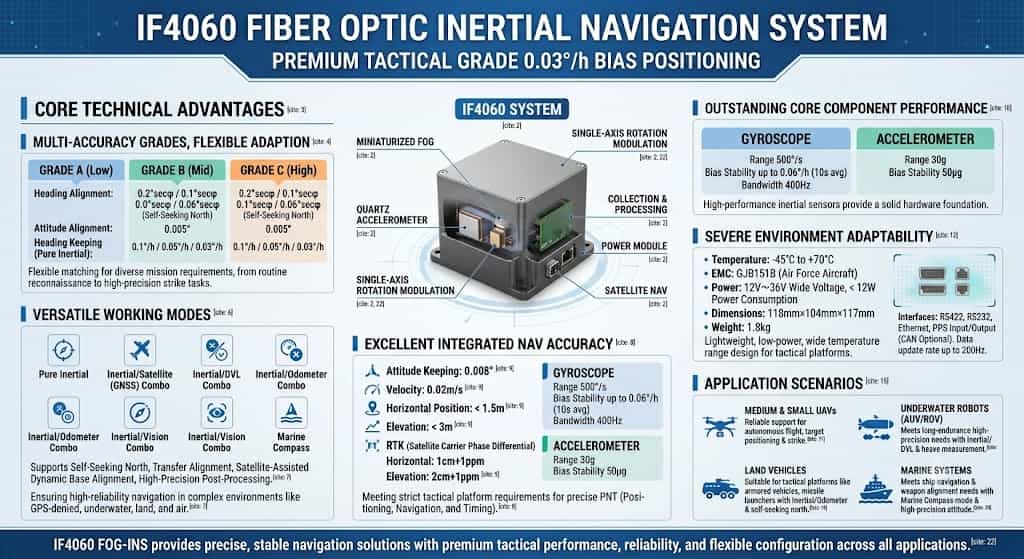

The IF4060 fiber-optic inertial navigation system (INS) is a single-axis rotation-modulated system primarily composed of a miniaturized fiber-optic gyroscope, quartz accelerometers, a servo mechanism, a power supply module, a data acquisition and processing module, and a satellite navigation module. Characterized by its compact size, light weight, high precision, and low cost, the product is capable of self-calibrating certain inertial component errors. As a high-end tactical-grade INS, the IF4060 is suitable for a wide range of demanding applications, including small-to-medium-sized UAVs and underwater robots.
Core Technical Advantages
1. Multiple Precision Levels for Flexible Adaptation
The IF4060 is available in three models—A, B, and C—corresponding to low, medium, and high precision levels, respectively; they share identical external characteristics, such as form factor and interfaces. Heading alignment accuracies are 0.2°secφ, 0.1°secφ, and 0.06°secφ (self-north-seeking), respectively; attitude alignment accuracy is 0.005° across all models; and heading hold accuracy (pure inertial mode) is 0.1°/h, 0.05°/h, and 0.03°/h, respectively. This three-tier precision design allows the IF4060 to flexibly meet the varying navigation accuracy requirements of different missions, handling everything from routine reconnaissance to high-precision strike operations.
2. Comprehensive Operating Modes
The IF4060 supports multiple operating modes, including pure inertial, inertial/satellite, inertial/DVL, inertial/odometer, inertial/visual, and marine compass modes. It also supports functions such as self-north-seeking, transfer alignment, satellite-aided moving-base alignment, and high-precision post-processing. This comprehensive mode coverage ensures highly reliable navigation capabilities in complex environments—including GPS-denied, underwater, land, and aerial scenarios—fully meeting the adaptability requirements of tactical-grade products for complex battlefield conditions.
3. Excellent Integrated Navigation Precision
In satellite-integrated navigation mode, attitude hold accuracy reaches 0.008°, velocity accuracy is 0.02 m/s, horizontal position accuracy is better than 1.5 m, and vertical position accuracy is better than 3 m. When utilizing a satellite carrier-phase differential link, the system achieves a horizontal accuracy of 1 cm + 1 ppm and a vertical accuracy of 2 cm + 1 ppm. This exceptional level of integrated navigation precision ensures the IF4060 fully meets the rigorous requirements for precise positioning, navigation, and timing (PNT) demanded by tactical-grade combat platforms.
4. Superior Core Component Performance
The IF4060 is equipped with a gyroscope featuring a measurement range of 500°/s, a bias stability of up to 0.06°/h (10s average), and a bandwidth of 400 Hz; the accelerometer offers a measurement range of 30g and a bias stability of 50 μg. These high-performance inertial components provide a robust hardware foundation for the system's high-precision navigation capabilities.
Adaptable to Harsh Environments and Tactical Demands
The IF4060 operates within a temperature range of -45°C to +70°C, and its electromagnetic compatibility complies with the GJB151B standards for Air Force aircraft. It supports a wide input voltage range of 12V to 36V and consumes less than 12W of power. With dimensions of 118mm × 104mm × 117mm and a weight of only 1.8 kg, its lightweight, low-power, and wide-temperature design allows for flexible integration and deployment across various tactical platforms.
Regarding interfaces, the IF4060 provides RS422, RS232, Ethernet, and PPS input/output ports, with customizable CAN interface options available. It supports a data update rate of up to 200 Hz, ensuring real-time responsiveness in highly dynamic operational scenarios. Application Scenarios
Leveraging the aforementioned superior performance, the IF4060 fiber-optic inertial navigation system is widely used in:
Small and medium-sized UAVs: Its lightweight design combined with high-precision navigation capabilities ensures reliable autonomous flight, target positioning, and engagement;
Underwater robots: Integrated Inertial/DVL navigation and heave measurement capabilities meet the requirements for long-endurance, high-precision underwater navigation;
Land vehicles: Integrated Inertial/Odometer navigation combined with an automatic north-finding function makes it suitable for tactical platforms such as armored vehicles and missile launchers;
Marine systems: Marine compass modes and high-precision attitude measurement meet the needs of ship navigation and weapon system alignment.
Conclusion
With its single-axis rotation modulation technology, core components comprising high-performance fiber-optic gyroscopes and quartz accelerometers, flexible configuration across precision grades, comprehensive operational modes, and superior integrated navigation accuracy, the IF4060 establishes itself as a high-end tactical-grade inertial navigation system. Whether for UAVs, underwater robots, land vehicles, or marine systems, the IF4060 delivers precise and stable navigation solutions through exceptional performance, reliable environmental adaptability, and flexible configuration capabilities.
