U6488 high-precision MEMS IMU: the core of stable control for drones and intelligent platforms

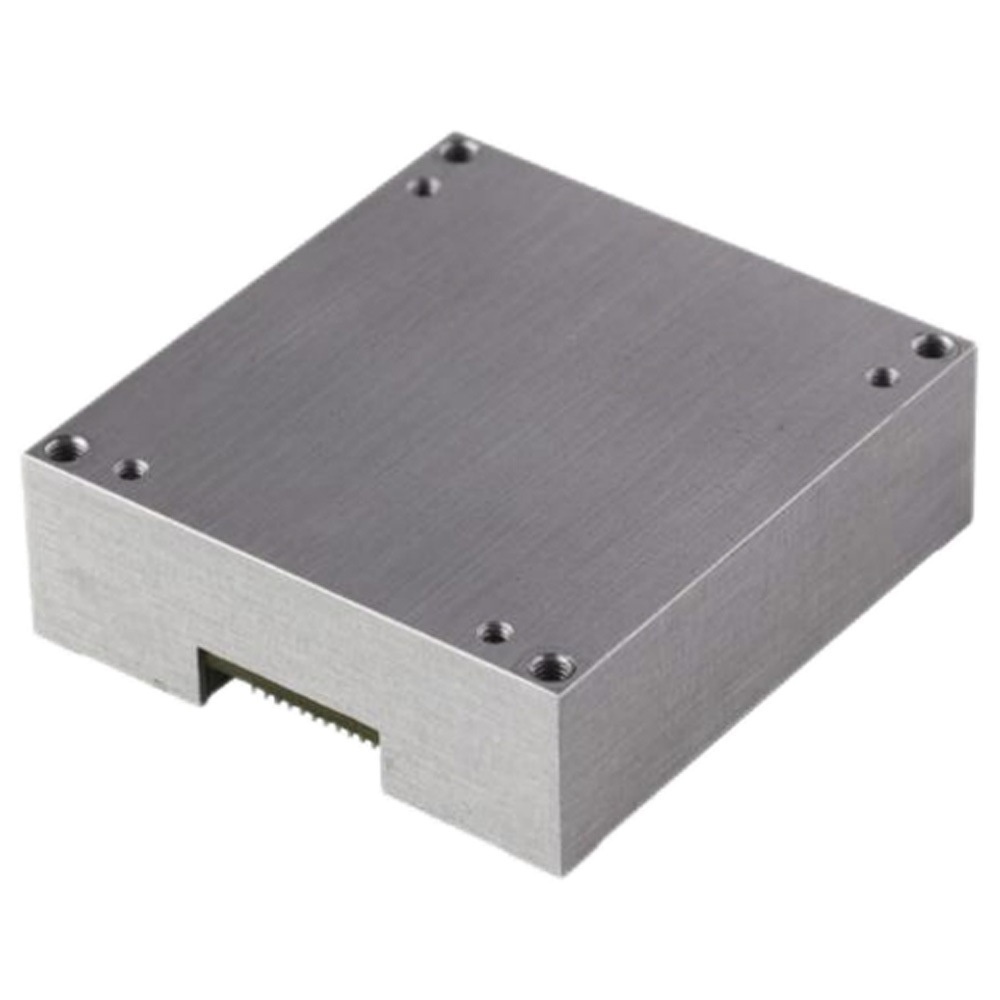

U6488 is a tactical-grade MEMS inertial measurement unit (IMU) that integrates a three-axis gyroscope, a three-axis accelerometer, a three-axis magnetometer and a barometer. It has 1°/h gyro bias stability, 30μg acceleration bias stability, and 2000Hz high-speed SPI output. It is suitable for high-dynamic application scenarios such as industrial drones, autonomous driving, robots and platform stabilization systems. Its compact design (47×44×14mm, 50g) and strong environmental adaptability make it a core sensor for precise navigation and flight control.

1. U6488: Tactical-Grade Performance in a Compact Package

The U6488 is a high-performance 10-DoF MEMS IMU featuring the following core specifications:

• 3-Axis Gyroscope: ±450°/s dynamic range, 1°/h Allan bias stability, 0.065°/√h random walk

• 3-Axis Accelerometer: ±16g/±20g dynamic range, 30μg Allan bias stability, 0.01 m/s²/√h random walk

• Magnetometer: ±8 Gauss range, 200μGauss resolution, 50μGauss noise density

• Barometer: 450–1100 mbar range, 0.1 mbar resolution, 1.5 mbar absolute accuracy

• Interfaces: SPI up to 2000Hz, UART at 230.4kbps for high-speed data transmission

• Physical Specs: 47×44×14mm in size, weighing just 50g—ideal for small to medium UAV platforms

With built-in full-temperature calibration and compensation, and a wide operating temperature range (-40°C to +85°C), the U6488 ensures consistent and precise output even in harsh environments.

2. IMU: The Brain of Drone Flight Stabilization

The IMU captures real-time angular velocity and linear acceleration in three-dimensional space, delivering essential feedback to the flight control system for closed-loop control. The U6488 plays a decisive role in this process:

• Attitude Estimation: The gyroscope provides real-time pitch, roll, and yaw rate data, enabling accurate estimation of drone orientation via integration.

• Acceleration Feedback: The accelerometer detects drone motion states such as acceleration and deceleration, enhancing control precision.

• Magnetic Heading: The magnetometer offers a reliable directional reference, especially critical in GNSS-denied environments.

• Altitude Estimation: The barometer measures atmospheric pressure variations to estimate relative altitude changes for stable hovering and landing.

3. Real-Time Performance for Closed-Loop Control

Compared to slower sensors like GPS, the U6488 offers millisecond-level data refresh and ultra-low latency. With SPI sampling rates up to 2000Hz, it enables high-frequency control loop updates—critical for maintaining aerial stability in dynamic conditions.

Here’s how the flight control loop is formed:

1. The U6488 detects the drone’s current attitude.

2. The flight controller computes the adjustment.

3. The ESC modulates motor speeds accordingly.

4. The drone’s attitude changes.

5. The U6488 re-senses the new state—completing the closed loop.

Without the real-time feedback from the IMU, this control loop simply cannot be established.

4. Enabling the Future of Autonomous Systems

Beyond meeting current flight control needs, the U6488 is designed for the future of autonomous decision-making and swarm collaboration:

• High-Speed SPI enables low-latency data exchange for dynamic path planning and obstacle avoidance.

• Lightweight Design (50g) supports strict payload requirements for compact drone platforms.

• High Reliability: With an MTBF of 20,000 hours, the U6488 supports long-duration, maintenance-free operations.

Conclusion:
By combining tactical-grade inertial sensing performance, lightweight design, and high-speed communication interfaces, the U6488 is not only the “core sensor” for stable drone flight control but also the “perception engine” for next-generation intelligent systems.
