High Performance MEMS Dual Axis Accelerometer Sensor SPI Digital Output Ceramic Package Inertial Measurement Sensor

The AC-MAD210 silicon-based MEMS accelerometer adopts a compact 48-pin ceramic package design and advanced MEMS sensing technology. It is a high-performance dual-axis accelerometer featuring high precision, excellent stability, wide environmental adaptability, and reliable digital output performance.

Part No, :
AC-MAD210
Order(MOQ) :
1

Product Description

Product Series and Parameters

Model	AC-MAD210 -5	AC-MAD210 -10	AC-MAD210 -16	AC-MAD210 -20	AC-MAD210 -30	AC-MAD210 -50	Unit
Encapsulation	CLCC48	CLCC48	CLCC48	CLCC48	CLCC48	CLCC48
Axial	X，Y	X，Y	X，Y	X，Y	X，Y	X，Y
Range	5	10	16	20	30	50	g
Scale nonlinearity	<1500	<1500	<1500	<1500	<1500	<3000	ppm（IEEE Norm , of full scale）
Bandwidth (adjustable) 3db	150	150	150	150	150	150	Hz
Delay	<1.5	<1.5	<1.5	<1.5	<1.5	<1.5	ms
VRE	100	100	50	50	40	30	µg/g2
Noise	<12.5	<15	<20	<25	<40	<100	µg/√Hz
Resolution	<12.5	<15	<20	<25	<40	<100	µg
Zero bias room temperature before leaving the factory	<±1	<±1	<±1	<±1	<±1	<±1.5	mg (calibration value at room temperature)
Zero bias temperature drift before leaving the factory	<±1.25	<±2.5	<±3	<±3	<±5	<±6	mg
Zero bias temperature hysteresis before leaving the factory	<0.2	<0.4	<0.5	<0.5	<0.6	<0.7	mg
Residual zero-bias compensation after leaving the factory	<±0.2	<±0.25	<±0.3	<±0.4	<±0.75	<±1	mg (second-order piecewise compensation)
Zero bias stability (1s, smooth)	13	20	25	25	50	100	µg
Zero bias stability (10s, smooth)	8	15	15	15	35	50	µg
Zero bias stability allan	2	4	5	5	10	15	µg
Annual repeatability	<±0.6	<±1	<±1.25	<±1.25	<±1.75	<±2	mg
Switch repeatability 1σ	5	7.5	<10	<10	<20	<20	µg
Factory setting scale	1600000±320	800000±80	500000±50	400000±40	250000±50	150000±30	Lsb/g (calibration value at room temperature)
Annual repeatability	<±250	<±250	<±250	<±250	<±250	<±250	ppm
Scale temperature coefficient	<80	<80	<80	<80	<80	<80	ppm/°C
Residual after temperature compensation of the scale system	<100	<100	<100	<100	<100	<100	ppm (second-order compensation)
Startup time	<0.5	<0.5	<0.5	<0.5	<0.5	<0.5	s
Sampling frequency (adjustable)	16K ± 5%	16K ± 5%	16K ± 5%	16K ± 5%	16K ± 5%	16K ± 5%	Hz
Electric shock	3000	3000	3000	3000	6000	6000	g
No electrical shock	3000	3000	3000	3000	6000	6000	g
Vibration rectification error (6grms)			1	1	1	0.5	mg/grms
Operating Temperature	-45 - +85	-45 - +85	-45 - +85	-45 - +85	-45 - +85	-45 - +85	°C
Power supply voltage	5±0.25	5±0.25	5±0.25	5±0.25	5±0.25	5±0.25	V
Current	<20	<20	<20	<20	<20	<20	Ma
Communication interface	SPI	SPI	SPI	SPI	SPI	SPI	SPI

Production process

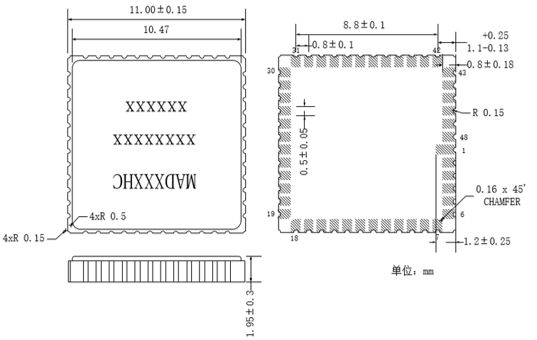

Product dimension

MEMS ACC

Application Scenarios

MEMS accelerometer application

The high-precision single-axis MEMS accelerometer is suitable for inertial measurement in medium-to-high accuracy IMU/INS systems, vehicle/rail motion sensing, and vibration/impact monitoring applications, featuring digital SPI output, wide measurement range options, high shock survivability, stable performance over temperature, compact structure, and easy integration/installation.

UAV

Robots

Autonomous Driving

FAQ

Q1: How does zero bias stability affect navigation accuracy?

A: Low bias stability (≤0.5 µg) minimizes long-term drift, directly reducing position/velocity errors in INS systems.

Q2: What is the scale factor and how is it used?

A: Scale factor (ppm-level calibrated) converts acceleration codes (0x1C–0x1E) to g: Acceleration (g) = Code / Scale Factor.

Q3:How does temperature affect measurement accuracy?

A: Built-in temperature sensor outputs 16-bit data (0x1A–0x1B) for real-time compensation.
