IF3900

IF3900-A

IF3900-B

Unit

System accuracy

Pure inertial alignment accuracy

North finding accuracy

≤0.01°×secφ

≤0.015°×secφ

RMS

Attitude accuracy

≤0.002°

≤0.005°

RMS

X`Pure inertia retention accuracy

Heading angle

≤0.01°

≤0.015°

RMS,1h

Attitude angle

≤0.002°

≤0.005°

RMS,1h

Position

≤0.2nmile/h

≤1nmile/h

CEP50%

Velocity

≤0.1m/s

≤0.5m/s

RMS,1h

Inertial/satellite combination accuracy

Course

≤0.01°

≤0.015°

RMS

Attitude

≤0.002°

≤0.005°

RMS

Position

Single point positioning: ≤ 1.2m

RTK: ≤ 2cm+1ppm

Single point positioning: ≤ 2m

RTK: ≤ 2cm+1ppm

RMS

Velocity

≤0.02m/s

≤0.02m/s

RMS

Inertia/ODO/DVL combination accuracy

Odometer/

DVL combination

≤ 0.3% × D (D is the mileage, depending on DVL accuracy)

Main device indicators

Gyroscope

Range

±500

±500

°/s

Zero bias stability

≤0.001

≤0.003

°/h(GJB, 1σ)

Accelerometer

Range

±30

±30

g

Zero bias stability

≤10

≤20

μg (GJB，1σ)

Physical characteristics

Supply voltage

28V

Power waste

≤35W

working temperature

-40℃~+60℃

Protection level

IP65

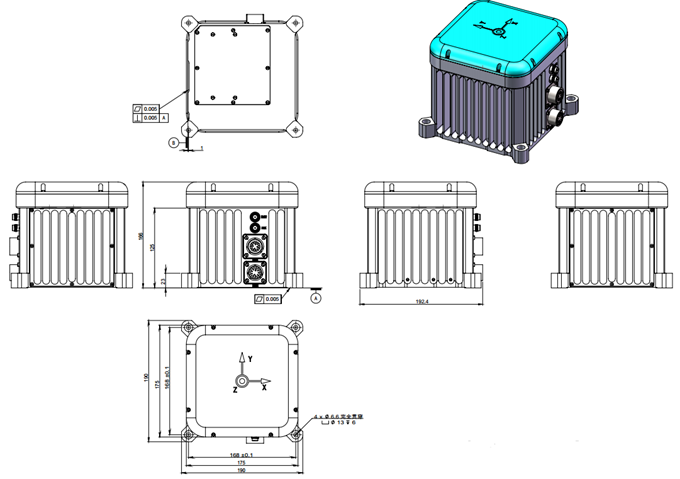

Physical dimensions

190×190×166mm

Weight

≤8.5kg

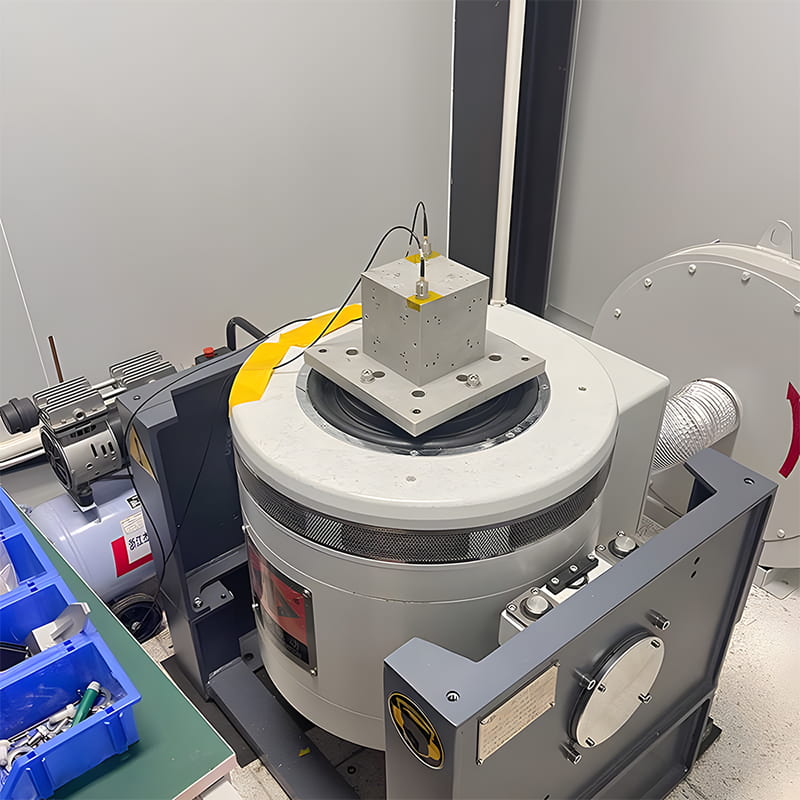

Vibration

Meet the vibration requirements of GJB150.16A-2009 and propeller aircraft equipment

Shock

30g, 11ms, 1/2 sine wave

Interface Characteristics

Interface form

1 RS232, 4 RS422, 1 CAN port, 1 Ethernet port, 1 USB port

Data update rate

Integrated navigation data: 1~800Hz (adjustable);

GNSS data: 1-5 Hz

transmission speed

9600~921600bps (configurable)
