High Performance Dynamic MEMS Inclinometer Sensor Dual Axis Tilt Sensor

High Performance Dynamic MEMS Inclinometer Sensor Dual Axis Tilt Sensor

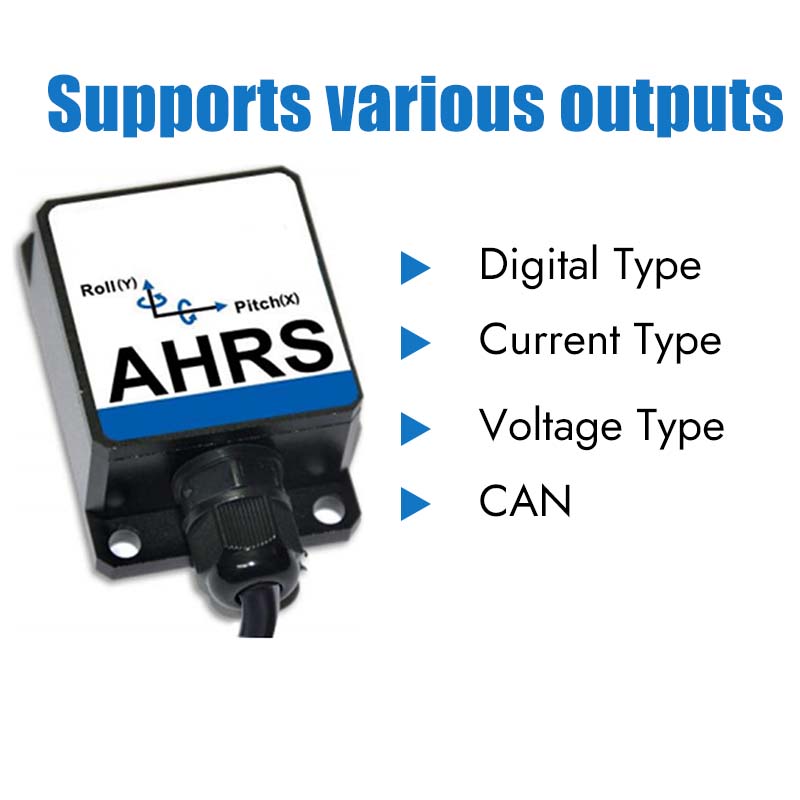

The TD7-DI is a new generation high-performance tilt sensor launched by Micro-Magic Inc, which can maintain high precision in complex movements with a small size. It has a dynamic measurement accuracy of 0.3°, a stable accuracy of 0.05°, and a temperature drift of 0.01°/℃. The output interfaces RS232, RS485, RS422, Modbus, TTL, and CAN buses are optional, making it easy to integrate into user control systems.

  • Part No, :

    TD7

  • Order(MOQ) :

    1
Inquire Now
categories
New Products
  • Description

Product Series and Parameters

Parameter Conditions TD7-DI Unit
Measuring range   ±10 ±30 ±60 ±90 °
Measuring axis axis X, Y X, Y X, Y X, Y
Zero temperature drift -40～85° ±0.05 ±0.05 ±0.05 ±0.05 °
Sensitivity temperature coefficient -40～85° ≤150 ≤150 ≤150 ≤150 ppm/℃
Frequency response DC response 100 100 100 100 Hz
Static accuracy -40～85° 0.05 0.05 0.05 0.05 °
Dynamic accuracy -40～85° 0.3 0.3 0.3 0.3 °
Long term stability -40～85° <0.35 °
Power-on start time   0.2 s
Response time   0.01 s
Output signal RS232/RS485/RS422/TTL/CAN/MODBUS  Can be ordered
Automatic output rate 5Hz output, 15Hz, 35Hz, 50Hz, 100Hz can be set
 (RS485 does not have this function)
Average working hours ≥55000 hours/time
Impact resistance 25000g, 0.5ms, 3 times/axis
Anti-vibration 10grms、10～1000Hz
Insulation resistance ≥100MΩ
Waterproof level IP67
Cable Standard 1.5 meter-length, wear-resistant, oil-proof, wide temperature, shielded cable 6*0.3mm2
Weight 75g (excluding packaging box)

Production process

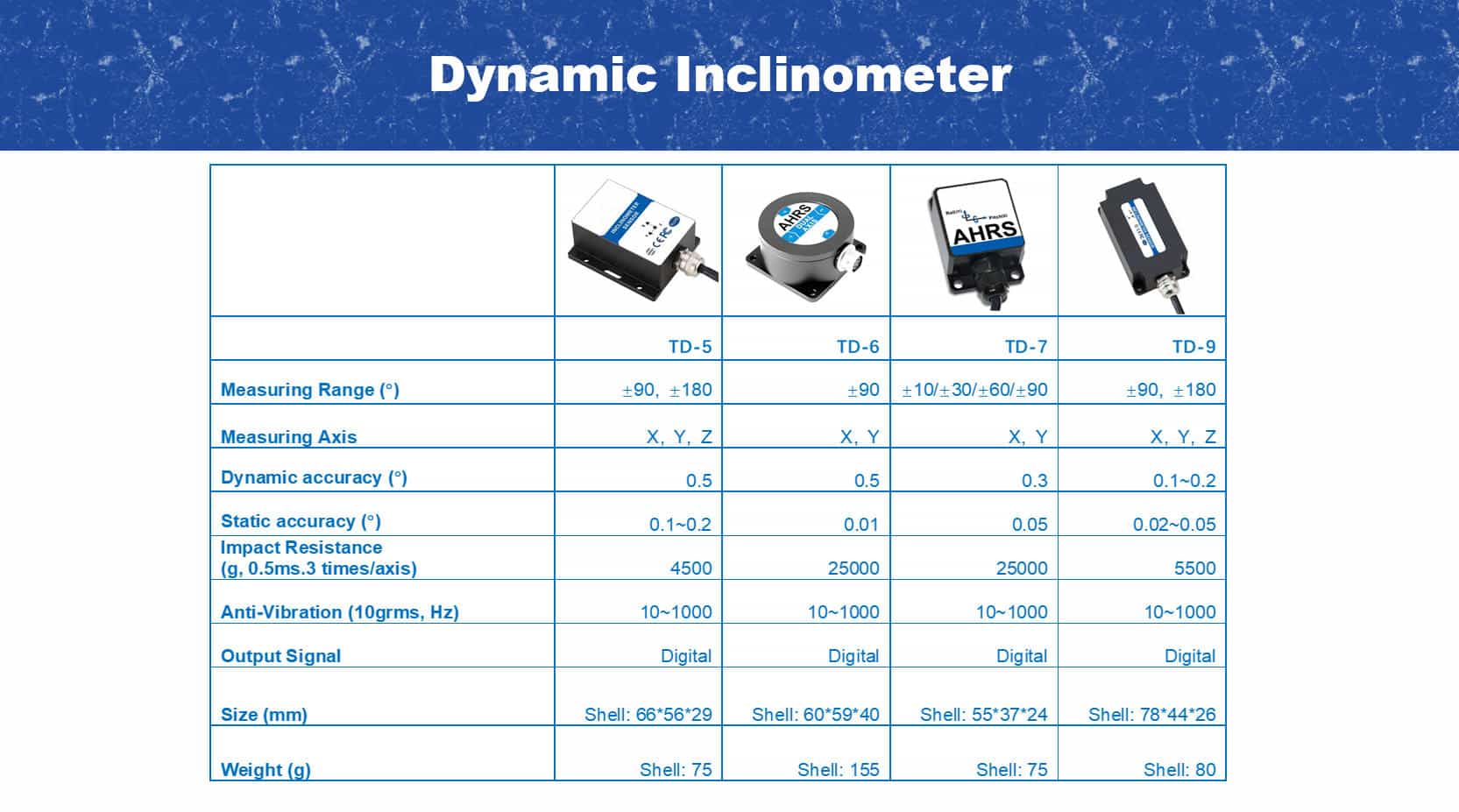

More similar products

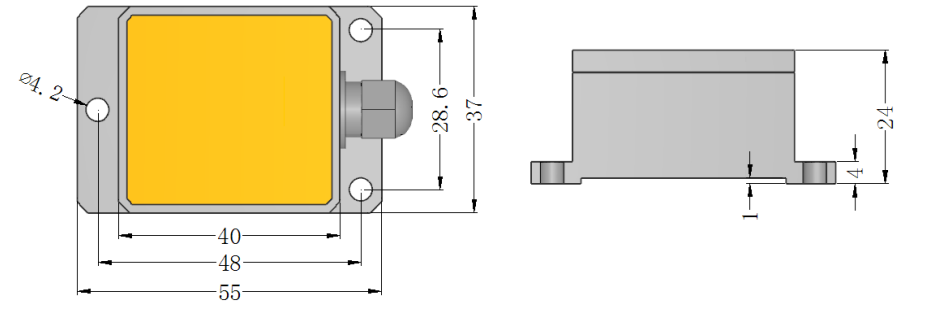

T7000 Dimensional Drawing

Product dimension



Application Scenarios

Inclination Sensor application
The TD7-DI is a high-performance industrial-grade dual-axis dynamic inclinometer designed for precise tilt measurement in complex motion and vibration environments. Integrating a vertical gyroscope and accelerometer with advanced N-order Kalman filtering and multi-compensation algorithms, it ensures stable and accurate attitude output even under dynamic conditions. With 0.05° static accuracy and 0.3° dynamic accuracy, along with ultra-low temperature drift (0.01°/℃), it delivers superior precision and long-term stability. Supporting multiple interfaces (RS232/RS485/RS422/TTL/CAN/Modbus), wide voltage input (5V or 9–36V), and IP67 protection across -40 to +85°C environments, it is ideal for railway leveling, bridge monitoring, precision machinery, antenna positioning, and industrial automation applications.
