M-XDR series is a Z-axis MEMS angular rate sensor (gyroscope) with a maximum range of up to ±2000°/s, and its digital output interface complies with the SPI slave protocol. The angular rate data is in 24-bit two's complement format.
M-XDR series is suitable for high-performance industrial applications. It uses an advanced differential MEMS design, which can eliminate the effects of linear acceleration and can operate in harsh environments with extreme shock and vibration.
The specially designed package can be soldered through the bottom or the front to simplify the system's structural design. When mounted on the bottom, the sensitive axis is perpendicular to the main circuit board. When mounted on the front, the sensitive axis is parallel to the main circuit board.
Part No, :
M-XDROrder(MOQ) :
1Product Series and Parameters
| Performance（Parameter） | Unit | Notes | |||
| Model | M-XDR-D0 | M-XDR-D1 | M-XDR-D2 | ||
| Package | 7.8 x 5.8 x 3 | mm | |||
| Axial | Z | ||||
| Measurement Range | 500 | 1000 | 2000 | deg/s | Clockwise rotation is positive output,Clamped at ±105%FS during over-range |
| Resolution | 24bit | 24bit | 24bit | bits | |
| Data Rate | 18Khz | 18Khz | 18Khz | Hz | Refresh rate of the output data at room temperature |
| Group delay | <2 | <2 | <2 | ms | Time delay between the physical input and the output signal |
| Bandwidth (-3dB) | ≥170 | ≥170 | ≥170 | Hz | Defined as the frequency for which attenuation is >-3dB |
| Bandwidth (-90 degree phase lag) | ≥130 | ≥130 | ≥130 | Hz | Bandwidth (@ -90° phase lag) (Hz) |
| Scale Factor at 25°C | 16000 | 8000 | 4000 | lsb/deg/s | factory setting |
| Scale Factor Repeatability (1σ ) | <25 | <20 | <15 | ppm | day by day at setting Temp(1σ ) |
| Scale Factor VS Temperature (1σ ) | <50 | <50 | <50 | ppm | Over temperature range（1σ） |
| Scale Factor Non-Linearity(1σ ) | <100 | <100 | <100 | ppm | Percentage of dynamic range using a best straight line fit |
| Bias Instability | 0.25 | 0.3 | 1 | deg/hr | Allan Variance @25°C |
| Bias stability @10s | 2.5 | 3 | 5 | deg/hr | 10s smoothing per GJB (Chinese Military Standard) |
| Bias stability @1s | 7.5 | 9 | 15 | deg/hr | 1s smoothing per GJB (Chinese Military Standard) |
| Angular Random Walk | <0.125 | <0.15 | <0.25 | °/ √h | Allan Variance @25°C |
| Bias error over temperature(1σ ) | <50 | <50 | <100 | deg/Hr | Over temperature range（1σ） |
| Bias temperature variations, calibrated(1σ ) | <10 | <10 | <30 | deg/Hr | Over temperature range（1σ） |
| Bias Run-Run(1σ ) | <1.5 | <2 | <3 | deg/hr | day by day at setting Temp(1σ ) |
| Noise Peak to Peak | 1 | 1 | 2 | deg/s | Over the Bandwidth frequency range, at room temperature |
| G Sensitivity | <1 | <1 | <1 | °/hr/g | Any axis，Tested over ±1g |
| VRE(Vibration rectification error) | <1 | <1 | <1 | °/hr/g（rms） | （12gRMS，20-2000） |
| Startup Time | 500m | 500m | 500m | s | Time to operational output |
| Environment, Power and Physical | |||||
| Shock (operating) | 3000g,1ms | ||||
| Shock (survival) | 6000g,10ms | ||||
| Vibration Operating | 20grms，Screening spectrum | ||||
| Operating Temperature | -40° ~ ＋150° | ||||
| Max storage (survival) Temperature | -60° ~ ＋150° | ||||
| Supply voltage | 3.3±0.3V | ||||
| Current consumption | 40mA | ||||
Packaging information

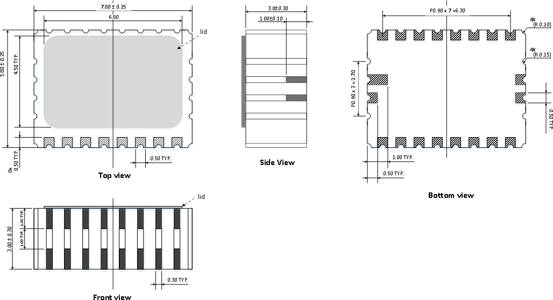

Figure 1 LCC20V Package Dimensions (Unit: mm)

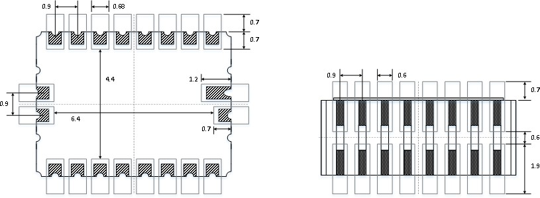

Figure 2 Proposed PCB Design (Unit: mm)
Application Scenarios
The MG501 is a high-performance single-axis MEMS gyroscope that outputs angular velocity and temperature data via SPI, suitable for high-precision rotational measurement and applications such as inertial navigation and attitude stabilization.
