Ultra High Precision MEMS Single Axis Gyroscope Sensor SPI Digital Output Ceramic Package Angular Rate Inertial Sensor

The MHZ-XXXX silicon-based MEMS gyroscope adopts a compact 48-pin ceramic package and advanced MEMS sensing technology. This ultra high precision single-axis gyroscope features high accuracy, excellent stability, low noise performance, wide temperature adaptability, and reliable digital output, providing precise angular velocity measurement for advanced inertial applications.

Part No, :
MHZ-XXXX
Order(MOQ) :
1

Product Description

Product Series and Parameters

Parameters	MHZ-102	MHZ-504	MHZ-1001	Unit	Notes
Measurement Range	100	500	1000	deg/s	Clockwise rotation is positive output,Clamped at ±105%FS during over-range
Resolution	32	32	32	bits
Data Rate	11.5k-12.5K	11.5k-12.5K	11.5k-12.5K	Hz	Refresh rate of the output data at room temperature
Group delay	50	10	5	ms	Time delay between the physical input and the output signal
Bandwidth (-3dB)	12	25	50	Hz	Defined as the frequency for which attenuation is >-3dB
Scale Factor at 25°C	20480000	4096000	2048000	lsb/deg/s	factory setting
Scale Factor Repeatability (1σ )	15	15	15	ppm	day by day at setting Temp(1σ )
Scale Factor Non-Linearity (1σ )	30	30	30	ppm	Percentage of dynamic range using a best straight line fit
Bias Instability	0.011	0.022	0.033	deg/hr	Allan Variance @25°C
Bias stability @10s	0.022	0.077	0.11	deg/hr	10s smooth GJB
Bias stability @1s	0.066	0.22	0.33	deg/hr	1s smooth GJB
Angular Random Walk	0.0011	0.0033	0.0055	°/ √h	Allan Variance @25°C
Bias error over temperature (1σ )	0.1	0.2	0.3	deg/Hr	Over temperature range（1σ）
Bias Run-Run (1σ )	0.05	0.075	0.1	deg/hr	day by day at setting Temp(1σ )
g Sensitivity	0.1	0.1	0.1	°/hr/g	Any axis，Tested over ±1g
VRE	0.5	0.5	0.5	°/hr/g（rms）	（12gRMS，20-2000）
Startup Time	900m	900m	900m	s	Time to operational output
Environment, Power and Physical
Shock (operating)	500g，1ms
Shock (survival)	6000g，10ms
Vibration Operating	18grms，Screen spectrum
Operating Temperature	-60 ~ +150 °C
Max storage (survival) Temperature	-60 ~ +150 °C
Supply voltage	5±0.25V
Current consumption	45ma
Dimension	11113mm

Packaging information

MG-XXXX adopts 48 pin ceramic packaging

Figure 1 Packaging Diagram

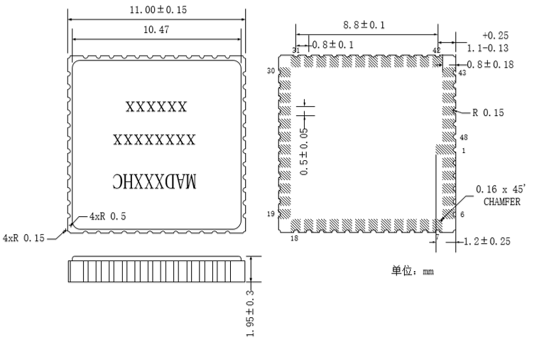

Figure 2 Packaging Size Diagram

Application Scenarios

MEMS Gyroscopes application

The MG501 is a high-performance single-axis MEMS gyroscope that outputs angular velocity and temperature data via SPI, suitable for high-precision rotational measurement and applications such as inertial navigation and attitude stabilization.

Aerospace

Aviation

Weapon

FAQ

Q1: What is the zero bias stability of the gyroscope?

Engineering: Factory-calibrated to ≤0.03°/h (Type A) via internal temperature compensation. Commercial: Ensures continuous orientation accuracy for industrial navigation systems, e.g., automated warehouse robots.

Q2: How does angular random walk (ARW) affect short-term precision?
Engineering: Low ARW (≤0.003–0.005 °/√h) reduces noise in rapid motion, enabling smooth control. Commercial: Critical for autonomous vehicles, ensuring jitter-free steering and positioning.

Q3: What temperature range does the gyroscope operate in?
Engineering: -40°C to +85°C with on-chip temp sensor (TEMP_OUT registers) for real-time compensation. Commercial: Ideal for outdoor IoT devices and factory machinery in extreme climates.
