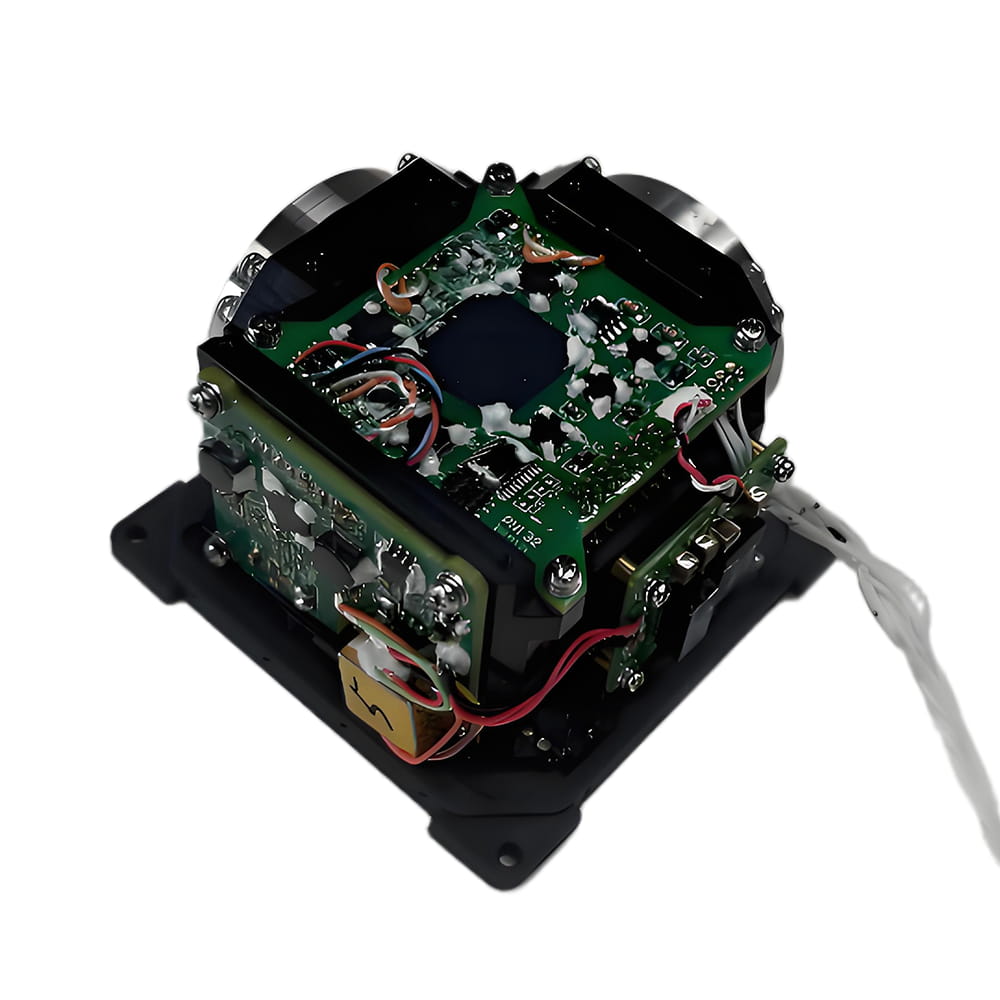

The G-F3X42 fiber optic gyroscope is a three-axis integrated fiber optic gyroscope composed of an optical path part, a circuit part, and a structural body. It adopts an optoelectronic integrated packaging, has a simple structure, and is easy to install. The direct data output of the gyroscope is easy to interface with the system computer, and users only need to provide power and receive the output data of the gyroscope through a plug to use it.
Part No, :
G-F3X42Order(MOQ) :
1Protection Level :
IP67Connector :
RS422Product Series and Parameters
|
No. |
Parameters |
Unit |
G-F3X42-A |
G-F3X42-B |
|
1 |
Measurement range |
°/s |
±500 |
±500 |
|
2 |
Zero bias stability at room temperature (10s, 1 σ) |
°/h |
≤0.3 |
≤0.1 |
|
3 |
Room temperature zero bias repeatability (10s, 1 σ) |
°/h |
≤0.1 |
≤0.1 |
|
4 |
Random walk coefficient |
°/h1/2 |
≤0.03 |
≤0.01 |
|
5 |
Non linearity of scaling factor at room temperature |
ppm |
≤50 |
≤50 |
|
6 |
Asymmetric scaling factor at room temperature |
ppm |
≤50 |
≤50 |
|
7 |
Full temperature scale factor repeatability |
ppm |
≤50 |
≤50 |
|
8 |
Output mode |
|
RS422 |
|
|
9 |
Dimension |
mm |
74*71.5*45 |
|
|
10 |
Bandwidth |
Hz |
≥500 |
|
|
11 |
Weight |
g |
≤310 |
|
|
12 |
Operation temperature |
℃ |
-45~+70 |
|
|
13 |
Storage temperature |
℃ |
-50~+75 |
|
Production process
Product dimension

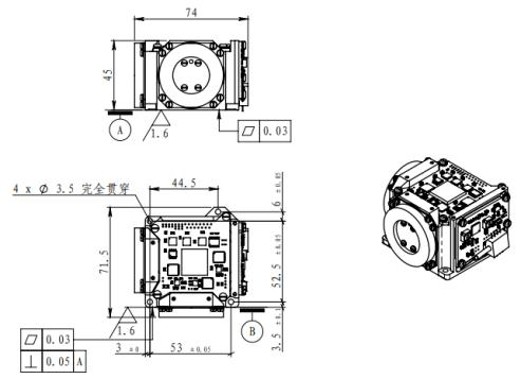

The details are shown in Figure 1 as below:
Application Scenarios
As a new type of all-solid state gyro, fiber optic gyroscope has the advantages of fast start, wide measurement range and high reliability. G-F2X64 dual-axial low precision fiber optic gyroscope can be applied to the on-board stability platform, guide head, crane bin and other fields. The specification is only applicable to G-F2X64 type products, including performance indicators, technical conditions, external dimensions and installation and use. Among them, the technical conditions include the environmental range, electrical performance and physical characteristics of the product.
